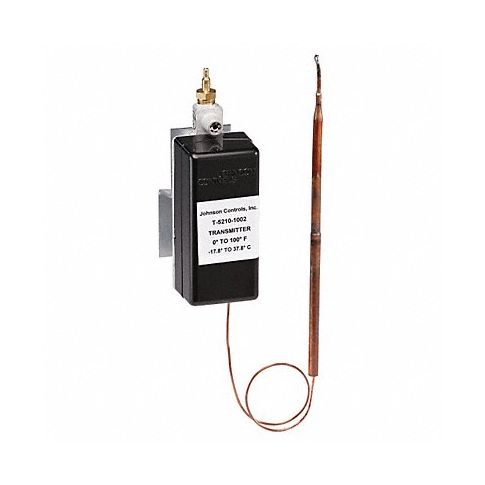

Pneu Temp Transmitter DA 0 to 100F MPN:T-5210-1009

Pneumatic temperature transmitter is designed to measure temperature, and convert those measurements to an air pressure signal, which is then transmitted to a pneumatic receiver, controller, or receiver-indicator. A pneumatic feedback function provides an exact proportional relationship between the measured temperature and the transmitted signal to help assure accurate, efficient temperature control. Ball-type control port also helps assure accuracy, with a bimetal element that helps compensate for ambient temperature effect. Mounts on a flat surface, in any position.

Technical Specifications

• Item Pneumatic Temperature Transmitter
• Action Type - Pneumatic Thermostats Direct Acting
• Max. Air Pressure 25 psi
• Max. Ambient Temp. 270 Degrees F
• Temp. Control Range 0 Degrees to 100 Degrees F
• Output Pressure Range 3 to 15 psi
• Capillary Length 96 in
• Sensing Bulb Dia. 1/4 in
• Sensing Bulb Length 4 in
• Control Air Pressure 3 to 15 psi
• Air Connections 1/8 in NPT Barbed Fitting for 5/32 in or 1/4 in OD Polytubing
• Element Type Bulb
• Height 5 3/16 in
• Width 3 in
• Depth 2 1/8 in
• Air Consumption 0.2 scfm

Manufacturer Details

• Manufacturer: Johnson Controls
• Condensed Mfg Number: T52101009
• MPN: T-5210-1009

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Pneumatic Temperature Transmitters
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 41112105
• UNSPSC Class ID: 21
• UNSPSC Commodity Name: Transducers
• UNSPSC Commodity ID: 05
• UNSPSC Commodity Name: Temperature transmitters
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
