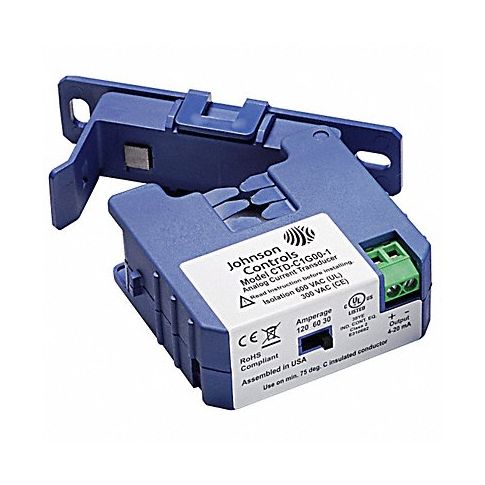

Current Transducer Split Foot Mounted MPN:CTD-C1G00-1

This snap-on power relay provides an easy way to add an external relay to a current sensor. Clamped/split core design helps reduce installation time. Slide switch makes it easy to select and match amperage ranges for application. Multiple outputs allows appropriate output for specific application. Features LED indication Off/On status. Nonintrusive device offers cost-effective solution for monitoring load or proof of operation as well as current flow through cable or wire.

Technical Specifications

• Item Current Transducer
• Range (Amps) 30/60/120
• Output 4 to 20mA
• Loop Supply Voltage 24V AC/V DC
• Rated Insulation Volts 600V AC
• Input Frequency (Hz) 50/60
• Length (In.) 1.0625 in
• Width (In.) 2.5625 in
• Height (In.) 2.7188 in
• Hole Dia. (In.) 23/32 x 13/16
• Includes Foot Mounting Holes

Manufacturer Details

• Manufacturer: Johnson Controls
• Condensed Mfg Number: CTDC1G001
• MPN: CTD-C1G00-1

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9030330040
• GDS Category Name: Current Transducers
• GDS Family Name: Process Monitoring
• GDS Segment Name: Test Instruments
• UNSPSC: 41112107
• UNSPSC Class ID: 21
• UNSPSC Commodity Name: Transducers
• UNSPSC Commodity ID: 07
• UNSPSC Commodity Name: Electro pneumatic transducers
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
