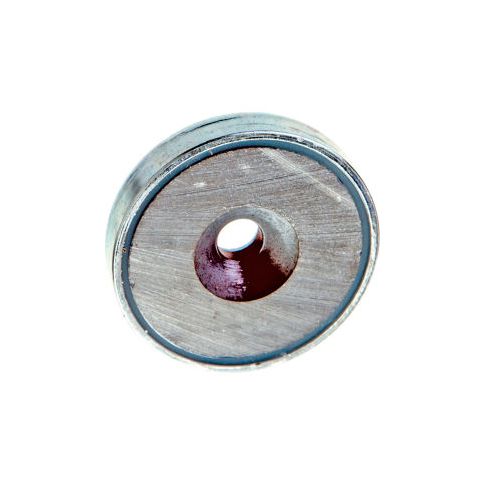

JW Winco 32-7-5.5 Retaining Magnet Assembly Disc-Shape w/Countersunk Thru Hole 1.26" Dia Steel 50.4-HF-32-7-5.5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-57495B21
JW Winco 32-7-5.5 Retaining Magnet Assembly Disc-Shape w/Countersunk Thru Hole 1.26"" Dia Steel 50.4-HF-32-7-5.5
J.W. Winco 50.4-HF-32 Retaining Magnet Assembly Disc-Shape w/ Countersunk Thru Hole, 1.26" Dia Steel
GN 50.4 magnets are a shielded magnetic assembly. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material. Temperature resistant to 390°F (200°C),
GN 50.4 magnets are a shielded magnetic assembly. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material. Temperature resistant to 390°F (200°C),
Product Specifications
- NOMINAL PULLING FORCE72 N
- MAGNET CONTRUCTIONHard Ferrite SrFe (HF type)
- BRANDJ.W. Winco
- DIAMETER INCHES1.26
- THRU HOLE INCHES (D2)0.22
- TYPEWith Countersunk Thru Hole
- BODY THICKNESS INCHES (H)0.28
- CONSTRUCTIONZinc Plated Steel
- COUNTERSUNK SCREW HEAD DIAMETER INCHES (D4)0.47
Additional Information
- UPC: 664423485068
- UNSPSC: 31380000
- Brand: J.W. Winco Inc
- Material: Hard Ferrite SrFe (HF type)
- Package Quantity: 1
- Country of Origin: DE
- FOB Origin: WI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 10.00
- Package Width: 1.00
- Package Height: 6.00
- Package Weight: 0.06
Product info last updated on November 7, 2024 11:51am UTC
Category: General Purpose Hardware
