J.W. Winco 534-1.57-1/4X20-SW Diamond Cut Knurled Knob .94"(24) 1/4"-20 534-1.57-1/4X20-SW
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-47733B13
J.W. Winco 534-1.57-1/4X20-SW Diamond Cut Knurled Knob .94""(24) 1/4""-20 534-1.57-1/4X20-SW

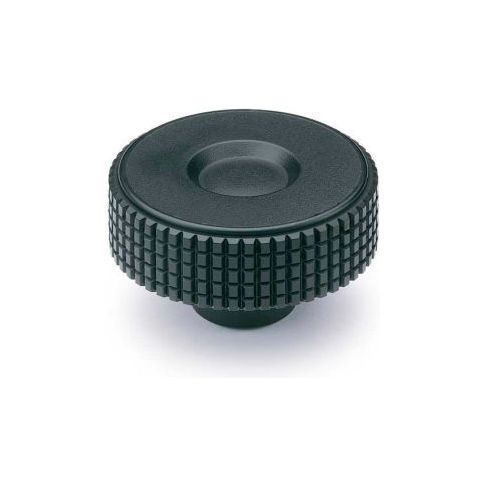

J.W. Winco 534-1.57-1/4X20-SW Diamond Cut Knurled Knob, .94"(24), 1/4"-20
Elesa® original design technopolymer plastic diamond cut knurled knobs. Outside rim has been designed with a truncated diamond knurl that provides a comfortable grip, and exercises maximum torque under the worst working conditions without causing operator fatigue. The design of the fine diamond knurling simplifies grip adjustment of the knob during rapid rotation, thus providing the best control without requiring extreme angular adjustments of the hand and wrist. Resistant to solvents, oils, grease and other chemical agents.
Elesa® original design technopolymer plastic diamond cut knurled knobs. Outside rim has been designed with a truncated diamond knurl that provides a comfortable grip, and exercises maximum torque under the worst working conditions without causing operator fatigue. The design of the fine diamond knurling simplifies grip adjustment of the knob during rapid rotation, thus providing the best control without requiring extreme angular adjustments of the hand and wrist. Resistant to solvents, oils, grease and other chemical agents.
Product Specifications
- MATERIALZinc Plated Steel
- BRANDJ.W. Winco
- KNOB DIAMETER1.57"
- HOLE SIZE / THREAD1/4-20
- d11.57"(40mm)
- MANUFACTURERS PART NUMBER534-1.57-1/4X20-SW
- h2.43"(11mm)
- FINISHBlack Matte
- d2 TAPPED1/4"-20
- TYPEDiamond Cut Knurled Knob
- d4.67mm(2.64mm)
- t1 min.47"(12mm)
- SERIESEN534
- H1.94"(24mm)
Additional Information
- UPC: 664423457102
- UNSPSC: 31162801
- Brand: J.W. Winco Inc
- Package Quantity: 1
- Country of Origin: DE
- FOB Origin: WI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.05
Product info last updated on January 2, 2025 2:36pm UTC
Category: Knobs
