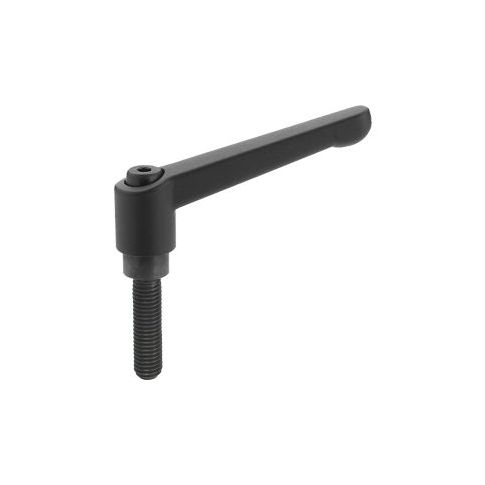

Die Cast Adjustable Lever - 1/2-13 - 3.07" Handle - 1.77" Stud - Black - J.W. Winco 8T45A03K GN300 8T45A03K
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-59628B22
Die Cast Adjustable Lever - 1/2-13 - 3.07"" Handle - 1.77"" Stud - Black - J.W. Winco 8T45A03K GN300 8T45A03K
Die Cast Adjustable Lever - 1/2-13 - 3.07" Handle - 1.77" Stud - Black - J.W. Winco 8T45A03K GN300
GN300 Adjustable hand levers are the result of modern industrial design. All such levers have proven to be ideal wherever parts have to be clamped in a confined space or in a particular lever position. The insert is connected to the lever via serrations which can be easily be disengaged. Pulling the lever upwards, disengages the serrations, allowing it to be swivelled to the ideal clamping position. When releasing the lever, the serrations automatically re-engage.
GN300 Adjustable hand levers are the result of modern industrial design. All such levers have proven to be ideal wherever parts have to be clamped in a confined space or in a particular lever position. The insert is connected to the lever via serrations which can be easily be disengaged. Pulling the lever upwards, disengages the serrations, allowing it to be swivelled to the ideal clamping position. When releasing the lever, the serrations automatically re-engage.
Product Specifications
- DESCRIPTIONAdjustable Lever
- MANUFACTURERS PART NUMBER8T45A03K
- THREAD LENGTH1.77"
- BRANDJ.W. Winco
- SERIESGN300
- CONSTRUCTIONDie Cast
- THREAD1/2-13
- COUNTRY OF ORIGINImport
- SCREW CONSTRUCTIONSteel, Black Oxide Finish
- INSERT CONSTRUCTIONSteel, Black Oxide Finish
- HANDLE CONSTRUCTIONZinc Die-Cast
- UNIT OF MEASUREMENTInch (Imperial)
- COLORBlack
- HANDLE LENGTH3.07"
- TYPEThreaded Stud
Additional Information
- UPC: 664423278721
- UNSPSC: 27112100
- Brand: J.W. Winco Inc
- Color: Black
- Package Quantity: 1
- Country of Origin: DE
- FOB Origin: WI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.29
Product info last updated on May 28, 2024 1:50pm UTC
Category: Machine Hardware
