Brass Breather Valve - Low Profile - M10 x 1.0 Thread - J.W. Winco 883-M10X1-20-A-MS 883-M10X1-20-A-MS

Discount: See in Cart
Free Shipping
In Stock
Brand: Jw Winco
Part #: 883-M10X1-20-A-MS
UPC: 00664423555082
SKU
281-48393B22
48.87 for Minimum Order Qty of 3
$16.29 Each

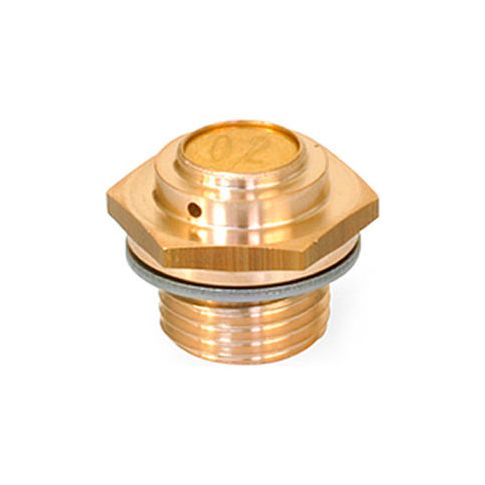

Brass Breather Valve - Low Profile - M10 x 1.0 Thread - J.W. Winco 883-M10X1-20-A-MS 883-M10X1-20-A-MS
Once the opening pressure given in the table is exceeded, GN 883 breather valves will vent into a container and so protect against excessive internal container pressure. They also feature very compact dimensions. The simple function principle (pressure spring / ball) ensures long and trouble-free use of the valve. The installation position is vertical to the top. Temperature resistant from -22° F to 212° F (-30° C to +100° C).

Product Specifications

  • BRANDJ.W. Winco
  • NUT HEIGHT6mm
  • SEALING WASHER CONSTRUCTIONDIN 7603 A, Nylon, PA6
  • MANUFACTURERS PART NUMBER883-M10X1-20-A-MS
  • SEALING RING DIAMETER17mm
  • NUT WIDTH18.5mm
  • ACROSS FLATS14mm
  • NUT WIDTH (POINT TO POINT)16mm
  • SERIESGN883
  • THREADM10 x 1.0
  • CA. AIR PASSAGE I/MIN1.2mm
  • OPENING PRESSURE IN MBAR20 (Min.) - 80 (Max.)
  • THREAD LENGTH6mm
  • SPRING CONSTRUCTION301 Stainless Steel
  • VALVE BODY CONSTRUCTIONBrass
  • BALL CONSTRUCTION5210 Stainless Steel


Additional Information
  • UPC: 664423555082
  • UNSPSC: 25175108
  • Brand: J.W. Winco Inc
  • Package Quantity: 1
  • Country of Origin: DE
  • FOB Origin: WI
  • Ships by: PARCEL
  • Comes in a kit: No
  • Newly added to catalog: No
  • Item is on Clearance: No
  • Contains Hazardous Materials: No
  • CA Proposition 65 Applies: No
  • Package Length: 6.00
  • Package Width: 6.00
  • Package Height: 4.00
  • Package Weight: 0.02
