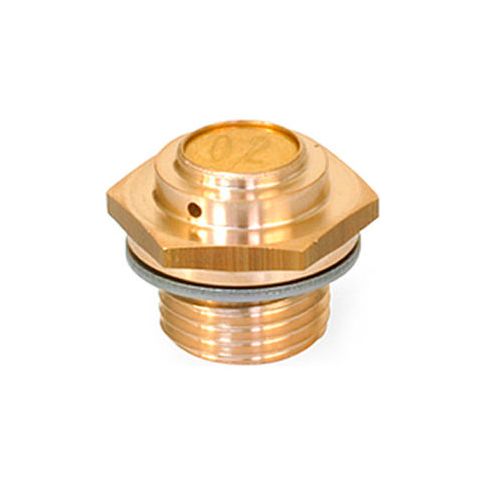

Brass Breather Valve - Low Profile - M12 x 1.5 Thread - J.W. Winco 883-M12X1.5-160-A-MS 883-M12X1.5-160-A-MS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-48392B22
Brass Breather Valve - Low Profile - M12 x 1.5 Thread - J.W. Winco 883-M12X1.5-160-A-MS 883-M12X1.5-160-A-MS
Once the opening pressure given in the table is exceeded, GN 883 breather valves will vent into a container and so protect against excessive internal container pressure. They also feature very compact dimensions. The simple function principle (pressure spring / ball) ensures long and trouble-free use of the valve. The installation position is vertical to the top. Temperature resistant from -22° F to 212° F (-30° C to +100° C).
Product Specifications
- BRANDJ.W. Winco
- NUT HEIGHT6mm
- SEALING WASHER CONSTRUCTIONDIN 7603 A, Soft Iron 1.0338
- MANUFACTURERS PART NUMBER883-M12X1.5-160-A-MS
- SEALING RING DIAMETER18mm
- NUT WIDTH18.5mm
- ACROSS FLATS17mm
- NUT WIDTH (POINT TO POINT)19.5mm
- SERIESGN883
- THREADM12 x 1.5
- CA. AIR PASSAGE I/MIN1.2mm
- OPENING PRESSURE IN MBAR160 (Min.) - 240 (Max.)
- THREAD LENGTH6.5mm
- SPRING CONSTRUCTION301 Stainless Steel
- VALVE BODY CONSTRUCTIONBrass
- BALL CONSTRUCTION5210 Stainless Steel
Additional Information
- UPC: 664423555105
- UNSPSC: 25175108
- Brand: J.W. Winco Inc
- Package Quantity: 1
- Country of Origin: DE
- FOB Origin: WI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.03
Product info last updated on May 28, 2024 1:50pm UTC
