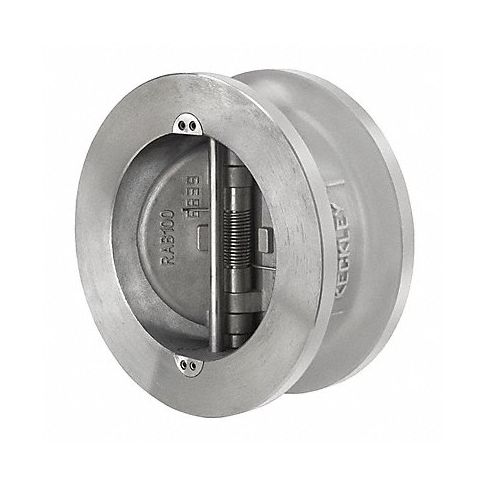

Wafer Check Valve Steel 2-1/2 Flange MPN:DD2R-CS-361IX-250
Free Shipping
In Stock
Wafer Check Valve, also known as swing check valve, is an essential component in industrial fluid systems that helps prevent backflow of fluids in the piping system by using a spring-loaded pin to close off flow in one direction while allowing free flow in the other. This Wafer Check Valve features stainless steel construction for corrosion resistance and durability while its 2-1/2 flange size ensures compatibility with most pipes and fittings in commercial applications. Its wafer design allows for easy installation by simply slipping it into the pipe between two flanges, eliminating the need for additional fittings or extra costly valve accessories. Ideal for use in water treatment, oil & gas, chemical, and food & beverage industries, Wafer Check Valve provides reliable and efficient operation to ensure consistent flow control and protection against backflow in the system.
Technical Specifications
- Item - Check Valves Check Valve
- Flow Design Single
- Mechanism and Body Design Inline Wafer
- Body Material - Valves Carbon Steel
- Pipe or Tube Size 2 1/2 in
- Connection Type Flanged Wafer x Flanged Wafer
- Cracking Pressure 1.046 psi
- Mounting Orientation Horizontal, Vertical
- Seal Material Buna-N
- Max. Temp. - Valves 100 Degrees F
- Max. Water Pressure - Valves 285 psi @ 100 Degrees F
- Max. Steam Pressure - Valves Not Rated
- Seat Material Buna-N
- Spring Material Inconel X-750
- Flow - Valves 98.0 gpm
- Application - Valves Process Piping
- Length 2 5/8 in
- Width 4 7/8 in
- Overall Height 2 5/8 in
- Standards API 594 and 6D, API 598, ASME B 16.34, ASME B16.5, MSS SP-25, MSS SP-55, MSS SP-6
Manufacturer Details
- Manufacturer: Keckley
- Condensed Mfg Number: DD2RCS361IX250
- MPN: DD2R-CS-361IX-250
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Check Valves
- GDS Family Name: Check Valves and Backflow Preventers
- GDS Segment Name: Plumbing
- UNSPSC: 40141622
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Inline check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
