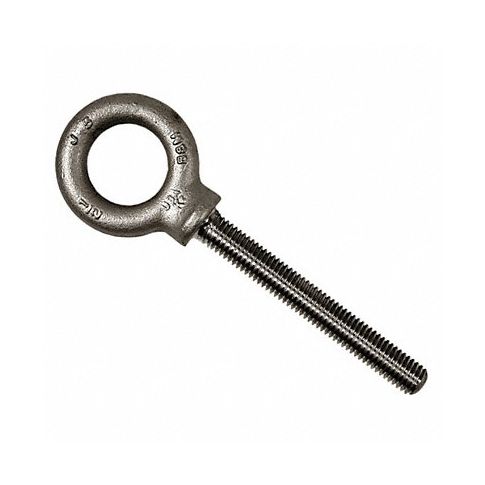

Machinery Eye Bolt Shank D 1/2 in MPN:K2025-3-SS
The machinery eye bolt shank D 1/2 is a robust and versatile fastening device suitable for various applications across industries due to its high tensile strength and corrosion resistance. It features an Eye at one end that enables easy lashing or tying-off while the other end has a threaded shaft which acts as a conventional bolt. Its compactness and ease of installation make it ideal for challenging positions requiring minimal interference, thus improving space utilization in equipment assemblies. Additionally, its variety of finishes such as zinc plated, stainless steel or hot dipped galvanized ensures compatibility with diverse environmental conditions. In conclusion, the machinery eye bolt shank D 1/2 is an essential component in bolting systems providing secure mounting and connecting solutions across sectors such as construction, fabrication, transportation, and marine among others.
Technical Specifications
- Item Eye Bolt
- System of Measurement Inch
- Eyebolt Type Lift with Shoulder
- Material Stainless Steel
- Finish Plain
- Thread Size 1/2"-13
- Thread Length 3 in
- Shank Dia. 1/2 in
- Shank Length 3 in
- Shoulder Dia. 0.88 in to 0.94 in
- Shoulder Length 0.19 in to 0.25 in
- Eye Inside Dia. 1 3/16 in
- Eye Outside Dia. 2 1/16 in
- Overall Length 5.58 in
- Min. Tensile Strength 75,000 psi
- Working Load Limit 2,400 lb
Manufacturer Details
- Manufacturer: Ken Forging
- Condensed Mfg Number: K20253SS
- MPN: K2025-3-SS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 5
Classification Details
- Harmonization Code: 7318152095
- GDS Category Name: Eyebolts
- GDS Family Name: Bolts
- GDS Segment Name: Fasteners
- UNSPSC: 31161610
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Bolts
- UNSPSC Commodity ID: 10
- UNSPSC Commodity Name: Eye bolts
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
