Profiling Insert: NPL51 K313, Solid Carbide MPN:1163284
Profiling Insert: NPL51 K313, Solid Carbide MPN:1163284 is available to buy in increments of 5

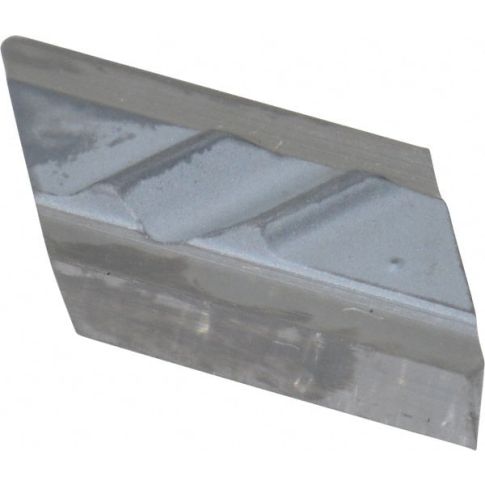

Profiling Insert: NPL51 K313, Solid Carbide
Profiling Insert: NPL51 K313, Solid Carbide 1/8" Thick, 1/64" Corner Radius, Series Top Notch
Product Information
- : 1163284
- Coating Classification: K
- Coating/Finish: Uncoated
- Corner Radius (Decimal Inch): 0.0156
- Corner Radius (Inch): 1/64
- Corner Radius (mm): 0.40
- Included Angle: 55
- Insert Hand: Left Hand
- Insert Length (Decimal Inch): 0.3752
- Insert Length (mm): 9.53
- Insert Material: Solid Carbide
- Insert Size Code: 51
- Insert Style: NPL
- Manufacturer Grade: K313
- Material Grade: C3; C4
- Rake: Positive
- Relief Angle: 8
- Series: Top Notch
- Shape: Parallelogram
- Side Length (Decimal Inch): 0.4567
- Side Length (mm): 11.60
- Thickness (Decimal Inch - 4 Decimals): 0.1250
- Thickness (Inch): 1/8
- Thickness (mm): 3.18
- Width (Decimal Inch - 4 Decimals): 0.2500
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 3:07am UTC
Category: Turning and Profiling Inserts
