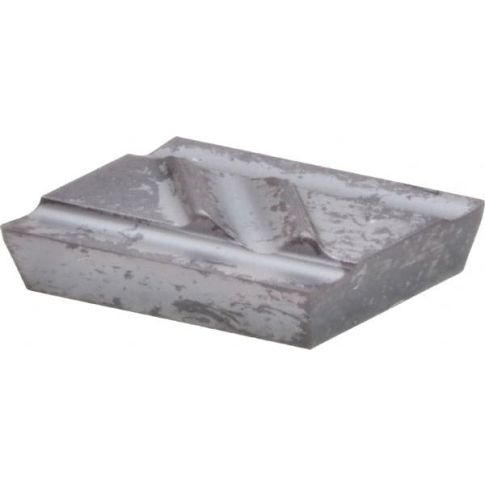

Profiling Insert: NPR505 KC5025, Solid Carbide MPN:1849983
Profiling Insert: NPR505 KC5025, Solid Carbide MPN:1849983 is available to buy in increments of 5
Profiling Insert: NPR505 KC5025, Solid Carbide
Profiling Insert: NPR505 KC5025, Solid Carbide 1/8" Thick, 0.0039" Corner Radius, Series Top Notch
Product Information
- : 1849983
- Coating Classification: KP
- Coating Process: PVD
- Coating/Finish: TiAlN
- Corner Radius (Decimal Inch): 0.0039
- Corner Radius (mm): 0.10
- Included Angle: 55
- Insert Hand: Right Hand
- Insert Length (Decimal Inch): 0.3752
- Insert Length (mm): 9.53
- Insert Material: Solid Carbide
- Insert Size Code: 505
- Insert Style: NPR
- Manufacturer Grade: KC5025
- Material Grade: C2; C6
- Maximum Depth of Cut (Decimal Inch): 0.2000
- Msc/Manufacturer Number: False
- Rake: Positive
- Rake Angle: 10
- Relief Angle: 8
- Series: Top Notch
- Shape: Parallelogram
- Side Length (Decimal Inch): 0.4567
- Side Length (mm): 11.60
- Thickness (Decimal Inch - 4 Decimals): 0.1250
- Thickness (Inch): 1/8
- Thickness (mm): 3.18
- Width (Decimal Inch - 4 Decimals): 0.2500
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 5:15am UTC
Category: Turning and Profiling Inserts
