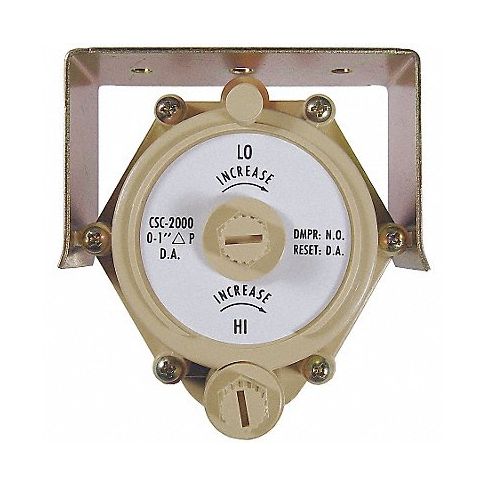

Reset Volume Controllers for VAV MPN:CSC-2001

Technical Specifications

• Item Reset Volume Controller
• Type Sub Master
• Control Type DA
• Thermostat Required for Cooling DA
• Thermostat Required for Heating RA
• Setpoint Range Minimum (In. WC) 0 to 1
• Setpoint Range Maximum (In. WC) Min + 1
• Reset Pressure Band 8 +/-0.5 to 13 psig
• Air Consumption 14.4 SCIM at 20 psig
• Output Sensitivity (In. WC) 5 PSI / 0.02 in wc
• Main Air Pressure (PSIG) 15 to 30 psig
• Connection Ports Push On Fittings For 1/4 in OD Tubing
• Max. Signal Pressure (In. WC) 6
• Material of Construction ABS
• Output Capability 0 to Supply Pressure
• Operating Temp. Limit (F) 40 to 120 Degrees F
• Mounting Hole Dia. (In.) 3/16 in
• Features Adjustable Min Max Air Flow
• Color Beige
• Accessories HFO-0006/SSS-1000 Series Flow Sensors, 4DEA3, 4DEA4, 4DEA5, 4DEA6
• Includes Mounting Bracket

Manufacturer Details

• Manufacturer: KMC
• Condensed Mfg Number: CSC2001
• MPN: CSC-2001

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9032896020
• GDS Category Name: Reset Volume Controllers
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 41112404
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Pressure measuring and control instruments
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Pressure regulator
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
