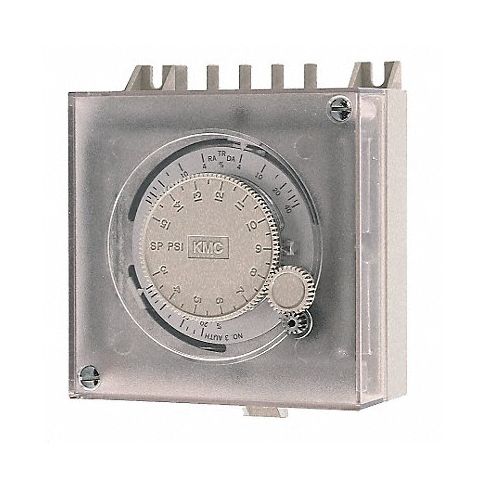

Receiver Controller Dual Input MPN:CCC-1002

The KMC pneumatic receiver-controller is designed for use with pressure switches, receiver gauges, relays, and temperature transmitters to control valves and actuators, including low-limit applications. Dual input with remote set point adjustment and high main valve capacity. Field selectable.

Technical Specifications

• Item Receiver Controller
• Type Dual Input w/Remote Set Point Adjustment, High Main Valve Capacity
• Control Type Field Selectable
• Operating Temp. Range (F) 40 to 120
• Air Input Range (PSI) 3 to 30
• Height (In.) 5 1/4 in
• Width (In.) 4 3/8 in
• Depth (In.) 2 5/16 in
• Pressure (PSI) 3 to 15
• Air Consumption 20 SCIM
• Gauge Optional
• Reset Capability Yes
• Output 3 to 15 psig
• Authority 20 to 200 Percent Adjustable
• Characteristics ABS UL 94HB Plastic Construction, Dir/Rev Acting, Remote SP Input
• Application Designed To Control Valves And Actuators In Hvac Systems, Including Low Limit Applications, Designed To Work With Pressure Switches, Receiver Gauges, Relays And Temperature Transmitters
• Includes 3/16 in (5 Mm) Nipples For 1/4 in (6 Mm) OD Polyethylene Tubing
• Product Description Proportional Control Device. Use With Pneumatic Transmitters Or Other 3 To 15 Psig Pneumatic Devices, For Controlling Valves And Actuators In HVAC Systems

Manufacturer Details

• Manufacturer: KMC
• Condensed Mfg Number: CCC1002
• MPN: CCC-1002

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9032896020
• GDS Category Name: Pneumatic Controllers
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40141603
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Valves
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Pneumatic valves
• UNSPSC Family ID: 14
• UNSPSC Family Name: Fluid and gas distribution
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
