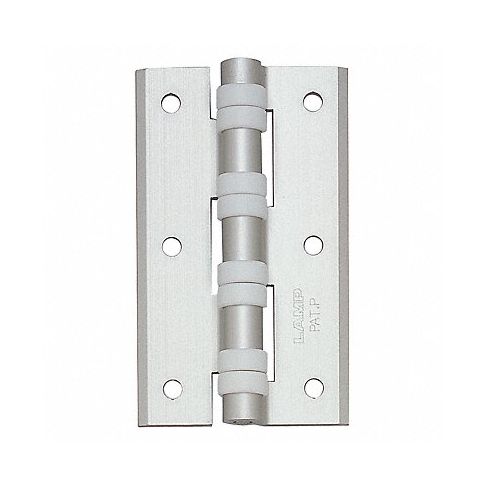

Butt Hinge 3-15/16 x 2-23/64 In. MPN:HG-CV100
Butt Hinge 3-15/16 x 2-23/64 In.
Manufactured from rust-resistant metal, this butt hinge is built to withstand the wear and tear of frequent use. With its corrosion-free construction, it remains durable even in high humidity and wet environments while maintaining strength and stability. Its standard size 3-15/16 inches x 2-23/64 inch dimensions make it suitable for doors weighing up to 75 pounds and are ideal for various commercial, residential, or industrial applications requiring secure attachment such as closets, cabinetry, shop doors, gates, and many more.
Lamp® lift-off hinge (also known as a loose-joint, slip-joint, or take-apart hinge) lets you remove the door from the frame without unscrewing the hinge; simply lift off, with no tools necessary. Made from corrosion-resistant aluminum, with a nonremovable stainless steel pin and polyacetal bushings that help eliminate metal-to-metal contact and minimize particles, making it an excellent choice for cleanroom applications.
Technical Specifications
- Item Lift-Off Hinge
- Material Aluminum
- Finish Alumite
- Load Capacity 14.3 lb
- Holes With
- Holes per Leaf 3
- Ligature Resistant No
- Range of Motion 180 Degrees
- Orientation Non Handed
- Door Leaf Height 3 15/16 in
- Frame Leaf Height 3 15/16 in
- Door Leaf Width 29/32 in
- Frame Leaf Width 29/32 in
- Door Leaf Thickness 0.125 in
- Frame Leaf Thickness 0.125 in
- Bearing Type Pin
- Corners Square
- Hardware Included
- Hinge Number #1 Standard
- Mounting Full Surface
- Overall Knuckle Height 3 15/16 in
- Pin Dia. 35/64 in
- Pin Material Stainless Steel
- Pin Type Removable
Manufacturer Details
- Manufacturer: Lamp
- Condensed Mfg Number: HGCV100
- MPN: HG-CV100
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8302106060
- GDS Category Name: Door and Butt Hinges
- GDS Family Name: Latches Hasps and Hinges
- GDS Segment Name: Hardware
- UNSPSC: 31162403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Miscellaneous fasteners
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Hinges
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 7:46am UTC
Category: Latches Hasps and Hinges
