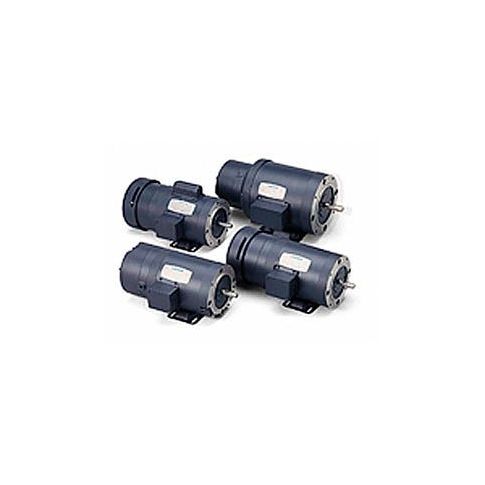

Leeson Motors - 1/3HP 115/208-230V 1725RPM TENV Rigid C Mount 1.15 S.F. 114165.00
Brake Motor: 1/3HP, 1725RPM, 56 Frame, Totally-Enclosed Non-Ventilated (TENV), 115/208-230V, 1PH, Continuous duty, No thermal protection, 1.15 Service Factor, Rigid C Mount.
Fail-safe positive, stop and hold brake motor. Brakes are spring set. Load is stopped automatically when power is turned off. Brake motors feature a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor. Single phase brake coils are 115/230 VAC, 60 Hz.
Product Specifications
- HORSEPOWER1/3
- ENCLOSURETENV
- FRAME56
- BRANDLeeson
- MOUNTINGC-Face Rigid
- MOTOR RPM 60Hz1725
- RPM1725
- PHASE1
- VOLTAGE115/208-230
- NAMEPLATE AMPS5.8/2.9
- COMPATIBLE WITH/REPLACESBaldor BL3517, Marathon D400
- HERTZ60
- SERVICE FACTOR1.15
- THERMAL PROTECTIONNo
- EFFICIENCY TYPEStandard
- CONSTRUCTIONRolled Steel
- AMBIENT TEMP C40
- SHAFT DIAMETER5/8
- SHAFT LENGTH INCHES1-7/8
- ROTATIONCCW
- ENCLOSURE TYPETotally Enclosed
- WEIGHT31
- ULY
- CSAY
- LEESON MODEL NO.C6C17NK19DD
- UPC69172001340
- DUTYContinuous
- MANUFACTURERS PART NUMBER114165.00
- RPM RANGE1701-1800
- FL EFFICIENCY70
- DESIGNCapacitor Start Inductor Run
- BEARING-DRIVE-END6203
Additional Information
- UPC: 691720013403
- UNSPSC: 26101102
- Brand: Leeson Electric
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 31.00
