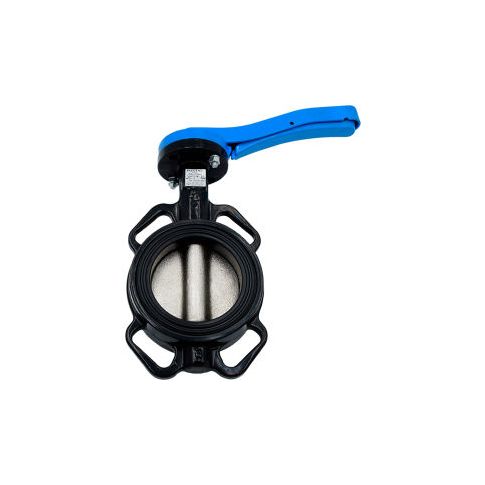

Legend Valve® T-335DI Butterfly Valve with EPDM Seals & 10 Position Handle 12" Wafer 116-459

12"" t-335di butterfly valve. Features ul style""margin-top0px; padding-top 5px; padding-bottom 5px;"" epoxy coated wafer body allows easy positioning between flanges extended neck will clear most piping insulation applications bi-directional flow 100% factory tested ductile iron disc epdm seats rigid phenolic-backed seat allows positive bubble-tight shutoff raised seat face eliminates the need for companion flange gaskets heavy-duty lockable ten-position lever handle cold working pressure (cwp) 200 psi flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593 manufactured in an iso accredited facility

Additional Information

• UPC: 662545124414
• UNSPSC: 40141678
• Package Quantity: 1
• Country of Origin: CN
• FOB Origin: MI
• Ships by: PARCEL
• Comes in a kit: No
• Newly added to catalog: No
• Item is on Clearance: No
• Contains Hazardous Materials: No
• CA Proposition 65 Applies: Yes
• Package Length: 6.00
• Package Width: 22.00
• Package Height: 27.00
• Package Weight: 59.00
