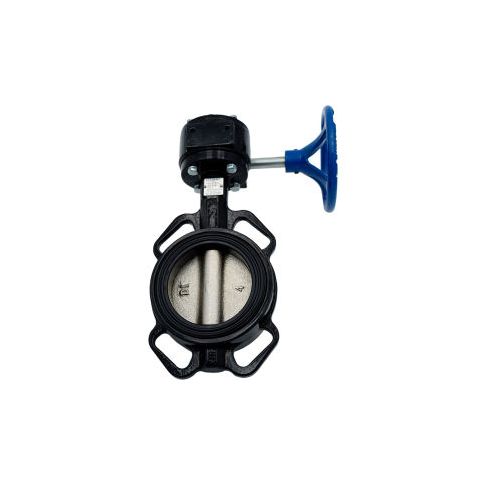

Legend Valve® T-337DI-G Butterfly Valve with BUNA Seals & Gear Operator 6" Wafer 116-496

6"" t-337di-g ductile iron wafer type butterfly valve with buna seats di disc gear operated epoxy coated wafer body allows easy positioning between flanges. Extended neck will clear most piping insulation applications. Bi-directional flow. 100% factory tested. Rigid phenolic-backed seat allows positive bubble-tight shutoff. Raised seat face eliminates the need for companion flange gaskets. Features ul style""margin-top0px; padding-top 5px; padding-bottom 5px;"" cold working pressure (cwp) 200 psi special order disc options t-335di & t-337di ductile iron disc flange connection features of the valve's body conform to ansi class 125/150 flange dimensions manufactured in an iso accredited facility manufactured in conformance to the following standards mss sp-67 api 609 awwa c504 en 593

Additional Information

• UPC: 662545124650
• UNSPSC: 40141678
• Package Quantity: 1
• Country of Origin: CN
• FOB Origin: MI
• Ships by: PARCEL
• Comes in a kit: No
• Newly added to catalog: No
• Item is on Clearance: No
• Contains Hazardous Materials: No
• CA Proposition 65 Applies: Yes
• Package Length: 6.25
• Package Width: 10.00
• Package Height: 18.00
• Package Weight: 22.55
