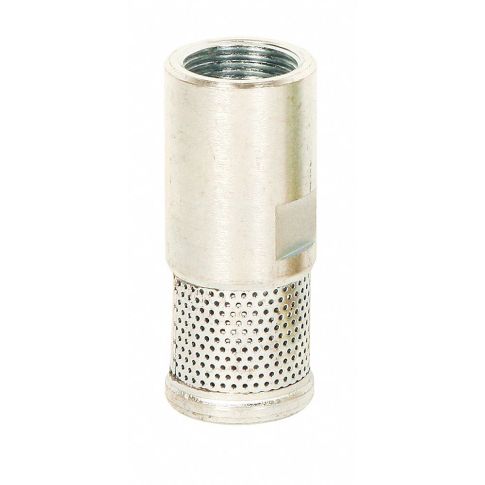

Foot Valve Ball Steel 1 MPN:950002
The ball valve is a versatile, easy-to-operate valve designed for controlling fluid flow in various applications across multiple industries. Made of durable steel material, it provides strength and resistance to wear and tear while ensuring long-lasting performance under harsh conditions. With a 1 inch size, it can handle various types of fluids and is compatible with most plumbing systems. Its ball valve design enables quick shutoff, making it ideal for applications where rapid flow control is needed, such as fire protection or process automation. Its smooth operation ensures minimal pressure drop and energy efficiency, making it an essential component in many industries, including water treatment, chemical processing, and oil and gas production.
Technical Specifications
- Item - Foot Valves Foot Valve
- Flow Design Single
- Design Ball
- Application - Valves Pumps
- Valve Body Design Inline
- Body Material - Valves Steel
- Strainer Material Steel
- Pipe or Tube Size - Valves 1 in
- Connection Type - Valves Screen x FNPT
- Max. Steam Pressure - Valves Not Rated
- Max. Water Pressure - Valves 50 psi @ 80 Degrees F
- Cracking Pressure - Valves 5.0 psi
- Min. Temp. - Valves 40 Degrees F
- Max. Temp. - Valves 120 Degrees F
- Mounting Orientation - Valves Vertical
- Seat Material - Valves Steel
- Seal Material - Valves Steel
- Flow - Valves 8.0 gpm
- Full Flow - Valves Yes
- Length 4 in
- Width 1 1/4 in
- Overall Height 4 in
Manufacturer Details
- Manufacturer: Liquidynamics Inc
- Condensed Mfg Number: 950002
- MPN: 950002
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8413190000
- GDS Category Name: Foot Valves
- GDS Family Name: Check Valves and Backflow Preventers
- GDS Segment Name: Plumbing
- UNSPSC: 40141622
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Inline check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
