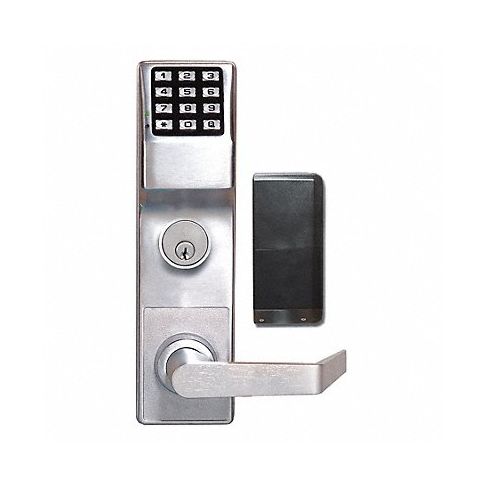

Electronic Lock Satin Chrome 12 Button MPN:ETDLNS1G/26DV99

The ALARM LOCK Trilogy® Networx™ wireless networking lock eliminates door-to-door programming and audit trail retrieval by communicating wirelessly via 802.11B/G or Ethernet. No wires to run and no access panel or power supplies to install. Features automatic schedules, event logs, and support for 2000 doors and 5000 existing proximity ID cards/badges. Built-in HID proximity card reader, full-metal digital key pad, integral bidirectional radio, batteries, and serial number ID card.

Technical Specifications

• Item Electronic Keyless Exit Trim Lock
• Function Entry with Key Override
• Access Method Proximity and Keypad
• Mounting Style Von Duprin Exit Devices
• Lock Material Zinc Alloy
• Finish Satin Chrome
• Series ETDLN
• Handle Type Lever
• Door Thickness 1-5/8 in to 1-7/8 in
• Key Override Options Schlage "C" Keyway (Included)
• Hand Nonhanded
• Number of Keys 0
• Power Source (5) AA Alkaline batteries
• Battery Life 100,000 Cycles
• Operating Temp. Range -31 Degrees to 151 Degrees F
• Max. User Codes 5000
• ADA Compliant Yes
• Grade 1
• Standards UL Listed
• Weather Resistant Yes
• Electrical/Mechanical Electrical
• Ligature Resistant No

Manufacturer Details

• Manufacturer: Locdown
• Condensed Mfg Number: ETDLNS1G26DV99
• MPN: ETDLNS1G/26DV99

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: DO
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8302416045
• GDS Category Name: Electronic Keyless Access Control Locks
• GDS Family Name: Keyless Access Locks
• GDS Segment Name: Hardware
• UNSPSC: 46171619
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Surveillance and detection equipment
• UNSPSC Commodity ID: 19
• UNSPSC Commodity Name: Security or access control systems
• UNSPSC Family ID: 17
• UNSPSC Family Name: Security surveillance and detection
• UNSPSC Segment ID: 46
• UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies

Shipping Details

• Not For Sale In: HI AK PR
