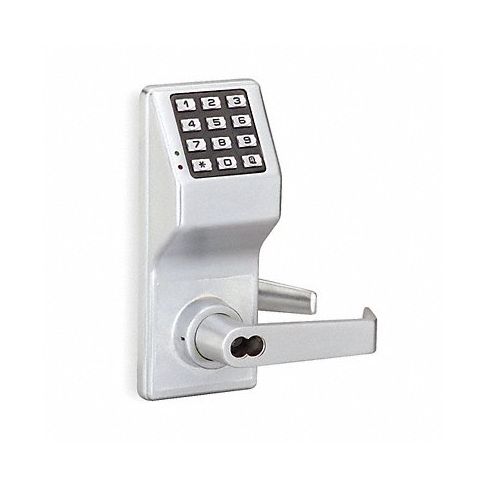

Electronic Lock Brushed Chrome 12 Button MPN:DL3200 US26D

The ALARM LOCK Trilogy® electronic access control lock works easily using only a code. Maximum 2000 user codes. 40,000 event audit trail. Using an electronic door lock helps eliminate the problem of lost keys and rekeying costs. Cylindrical lock easily replaces most standard knobsets. Nonhanded. Long life battery operation. 6-pin standard cylinder with a Schlage SC1 keyway. Office with key override.

Technical Specifications

• Item Electronic Keyless Lock
• Function Office with Key Override
• Access Method Keypad
• Mounting Style Cylindrical
• Lock Material Zinc Alloy
• Finish Satin Chrome
• Series DL3200
• Handle Type Lever
• Door Thickness 1-5/8 in to 1-7/8 in
• Key Override Options Standard SC1 Keyway
• Hand Nonhanded
• Outside Height 8 in
• Outside Width 3 1/4 in
• Inside Height 8 1/4 in
• Inside Width 3 1/4 in
• Inside Depth 1 11/16 in
• Backset 2-3/4 in
• Number of Keys 12
• Power Source (5) AA Batteries
• Battery Life 100,000 Cycles
• Operating Temp. Range -31 Degrees to 151 Degrees F
• Event Audit Trail 40,000
• Max. User Codes 2000
• Fire Rating 3 hr
• Grade 1
• Standards UL Listed
• Weather Resistant Yes
• Electrical/Mechanical Electrical

Manufacturer Details

• Manufacturer: Locdown
• Condensed Mfg Number: DL3200US26D
• MPN: DL3200 US26D

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: DO
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8301406030
• GDS Category Name: Electronic Keyless Access Control Locks
• GDS Family Name: Keyless Access Locks
• GDS Segment Name: Hardware
• UNSPSC: 46171604
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Surveillance and detection equipment
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Alarm systems
• UNSPSC Family ID: 17
• UNSPSC Family Name: Security surveillance and detection
• UNSPSC Segment ID: 46
• UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies

Shipping Details

• Not For Sale In: HI AK PR
