Time Delay Rlay 12 to 240VAC/DC 15A SPDT MPN:TE-8816U
Time Delay Rlay 12 to 240VAC/DC 15A SPDT
Macromatic's Time Delay Relay offers an unparalleled combination of features in one compact unit. It delivers 10 unique timing functions, including Flasher(Off First), Flasher(On First), Interval On, Latching Relay, Off Delay, Off Delay/On Delay, On Delay, One Shot, Pulse Generator(Pulse=0.5 Sec.),Watchdog, making it suitable for an array of applications. Its universal voltage input of 12-240V AC/DC caters to a wide range of settings, while the programmable time range from 0.1 second 10 days provides flexibility in usage. The 16A SPDT output contacts can handle most general purpose loads effortlessly, and the compact 17.5mm enclosure reduces space requirements and installation costs. Invest in Macromatic's Time Delay Relay to simplify your operation with an all-in-one solution!
Top product features:
- Versatile Timing Functions: Offers ten unique timing functions to accommodate various needs.
- Compact Design: Features a compact 17.5mm enclosure that conserves space and saves installation time and costs.
- Universal Voltage Input: Accepts a wide range of input voltages (12-240V AC/DC) for maximum flexibility in application settings.
Top product applications:
- Fluorescent lighting fixture delay timer: Offers timing functions to turn on/off fluorescent lights for energy savings, extending bulb life, and convenience.
- Home appliance automatic shut-off: Enables timing function to switch off power to unattended home appliances like irons, ovens or other equipment for added safety.
- Commercial/industrial machines control: Offers various timing functions in controlling the operation of assembly lines, packaging machines or other types of automated processes.

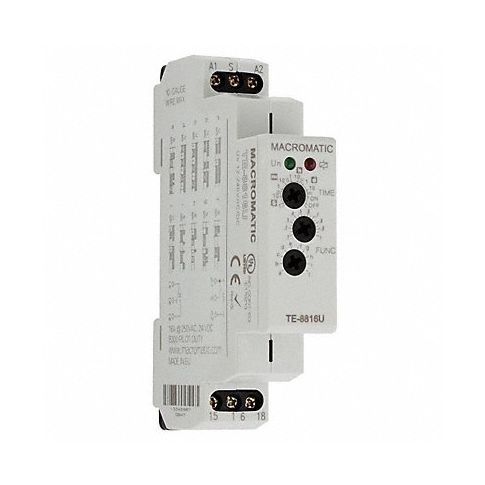

Macromatic's TE-881 series Time Delay Relays offer 10 timing functions and a universal voltage input of 12-240V AC/DC with a programmable time range from 0.1 second – 10 days, all in one compact unit. 16A SPDT output contacts can handle most general purpose loads. A green LED indicates input voltage applied; a red LED blinks during timing and is steady when the output relay is energized. This product has a compact 17.5mm enclosure which snaps on to 35mm DIN rail. This conserves space and reduces installation time, which saves money. With all this flexibility, the TE-881 Series replaces hundreds of separate time delay relays.
Technical Specifications
- Item - Relay Multi-Function Timing Relay
- Function - Timing Relay Flasher(Off First), Flasher(On First), Interval On, Latching Relay, Off Delay, Off Delay/On Delay, On Delay, One Shot, Pulse Generator(Pulse=0.5 Sec.),Watchdog
- Coil Volts 12 to 240V AC/DC
- AC Contact Rating - Relay 15A @ 240V
- Number of Pins - Relay 6
- Mounting - Relay DIN Rail
- Contact Form - Relay SPDT
- Power Consumption - Relay 1.7 W, 3.0 VA
- Adjustment Method - Timer Potentiometer
- Min. Time Setting - Timer 0.1 sec
- Max. Time Setting - Timer 10 day
- Status Indicator LED
- Contact Material Silver Alloy
- Body Height - Relay 3.55 in
- Body Width - Relay 2.52 in
- Body Depth - Relay 0.69 in
- Overall Height - Relay 3.55 in
- Electrical Connection Screw Clamp
- Socket Not Applicable
- Hz - Electrical 50 Hz, 60 Hz
- Standards CE, UL
Manufacturer Details
- Manufacturer: Macromatic
- Condensed Mfg Number: TE8816U
- MPN: TE-8816U
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9107000000
- GDS Category Name: Time-Delay Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121519
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Time relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 7:16pm UTC
Category: Relays
