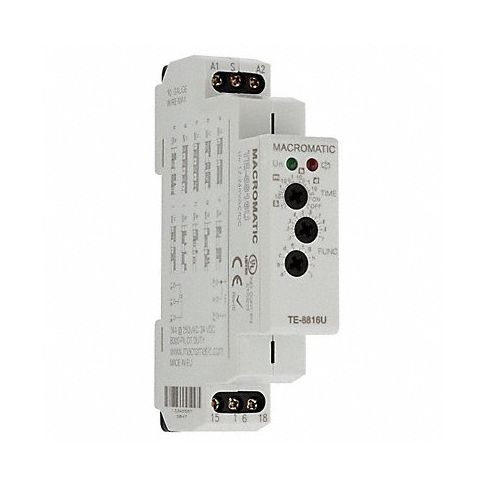

Time Delay Rlay 12 to 240VAC/DC 15A DPDT MPN:TE-8812U
Introducing Macromatic's TE-881 Multi-Function Time Delay Relay - the ultimate time delay solution for a variety of applications! This compact yet powerful device offers ten timing functions that can be programmed from 0.1 seconds to 10 days. The 16A DPDT output contacts are suitable for handling most general purpose loads, while the green and red LEDs provide visual indicators for input voltage applied and output relay status, respectively. The TE-881's universal voltage input of 12-240V AC/DC ensures compatibility in various settings, and its compact 17.5mm enclosure conserves space and reduces installation time, resulting in cost savings. With all these features combined, the TE-881 Series replaces hundreds of separate time delay relays and provides countless benefits such as flexibility, efficiency, reliability, and more! Its versatile applications include but are not limited to lighting controls, HVAC systems, security protocols, alarms, and much more. Upgrade your system with Macromatic's TE-881 Multi-Function Time Delay Relay today!
Top product features:
- 10 timing functions
- DPDT output contacts
- Green and red LED indicators
Top product applications:
- Lighting control in commercial and residential spaces
- Temperature regulation in HVAC systems
- Security and alarm systems
Technical Specifications
- Item - Relay Multi-Function Timing Relay
- Function - Timing Relay Flasher(Off First), Flasher(On First), Interval On, Latching Relay, Off Delay, Off Delay/On Delay, On Delay, One Shot, Pulse Generator(Pulse=0.5 Sec.),Watchdog
- Coil Volts 12 to 240V AC/DC
- AC Contact Rating - Relay 15A @ 240V
- Number of Pins - Relay 9
- Mounting - Relay DIN Rail
- Contact Form - Relay DPDT
- Power Consumption - Relay 1.7 W, 3.0 VA
- Adjustment Method - Timer Potentiometer
- Min. Time Setting - Timer 0.1 sec
- Max. Time Setting - Timer 10 day
- Status Indicator LED
- Contact Material Silver Alloy
- Body Height - Relay 3.55 in
- Body Width - Relay 2.52 in
- Body Depth - Relay 0.69 in
- Overall Height - Relay 3.55 in
- Electrical Connection Screw Clamp
- Socket Not Applicable
- Hz - Electrical 50 Hz, 60 Hz
- Standards CE, UL
Manufacturer Details
- Manufacturer: Macromatic
- Condensed Mfg Number: TE8812U
- MPN: TE-8812U
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9107000000
- GDS Category Name: Time-Delay Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121519
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Time relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
