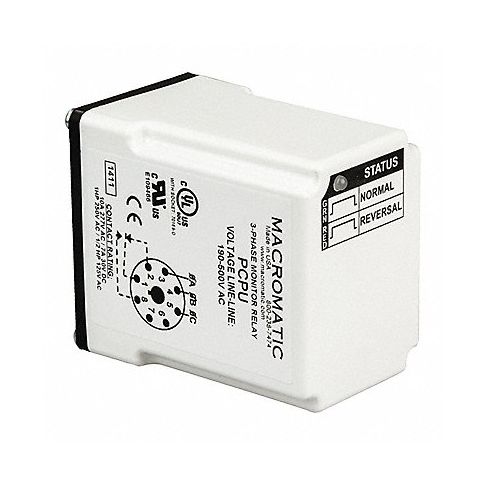

Phase Monitor Relay 190-500VAC Plug SPDT MPN:PCPU
Phase Monitor Relay 190-500VAC Plug SPDT
Protect your equipment from costly damages caused by phase reversal with Macromatic's PCP Series Three-Phase Monitor Relay! This powerful device continuously monitors all voltages of a 190-500V three-phase system and detects sequence problems. Its isolated relay output is only energized if the three phases are in the correct A-B-C sequence, while remaining open when two phases are reversed. Use this versatile relay in Wye or Delta systems without any need for adjustment or connection to Neutral. Perfect for applications where motor direction is essential, such as conveyors, elevators, and more. Keep your equipment running smoothly and avoid costly downtime with the PCP Series Three-Phase Monitor Relay from Macromatic!
Top product features:
- Continuous monitoring of all voltages in a three-phase system
- Protects motors and equipment from damage due to phase reversal
- Isolated relay output only energizes if the phases are in proper sequence
Top product applications:
- Protecting equipment in manufacturing plants from damage due to phase reversal
- Preventing expensive downtime in wastewater treatment facilities caused by motor failure
- Ensuring smooth operation of elevators and conveyors in commercial buildings
Macromatic's PCP Series Three-Phase Monitor Relay continuously monitors all voltages of a 190-500V three-phase system. It is used to protect motors and equipment from expensive damage due to phase reversal only. This relay has an isolated relay output that is only energized if the three phases are in the proper A-B-C sequence. The relay output will remain open if any two phases are reversed. One version will work on any three-phase system from 190-500V. No adjustment or special set up is required. Designed to be compatible with most Wye or Delta systems with no connection to Neutral required. Phase Reversal Relay should be used in applications where motor direction is critical or sequence detection is required by code.
Technical Specifications
- Item - Relay Phase Monitor Relay
- Input or Control Voltage 190 to 500V AC
- AC Contact Rating - Relay 10A @ 277V
- DC Contact Rating - Relay 7A @ 30V
- Base Type - Plug In Relay Octal
- Number of Pins - Relay 8
- Mounting - Relay Plug In
- Contact Form - Relay SPDT
- Over Voltage No
- Under Voltage No
- Phase Loss Sensitivity No
- Phase Reversal Yes
- Phase Reversal Time Delay Fixed 0.1 sec
- Phase Unbalance No
- Restart Auto
- Restart Time Delay Fixed 1.0 sec
- Socket Code - Relay A
- Body Height - Relay 2.9 in
- Body Width - Relay 1.7 in
- Body Depth - Relay 2.4 in
- Overall Height - Relay 3.0 in
Manufacturer Details
- Manufacturer: Macromatic
- Condensed Mfg Number: PCPU
- MPN: PCPU
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490075
- GDS Category Name: Phase Monitoring Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121517
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 17
- UNSPSC Commodity Name: Alternating voltage relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
