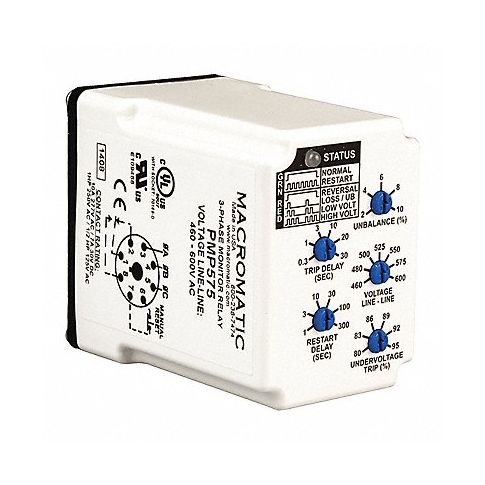

Phase Monitor Relay 480-600VAC Plug SPDT MPN:PMP575
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-45LU84
Phase Monitor Relay 480-600VAC Plug SPDT
Macromatic's PMP Series Three-Phase Monitor Relay continuously monitors all voltages of a 460-600V three-phase system. It is used to protect motors and equipment from expensive damage due to phase loss, phase reversal, phase unbalance, undervoltage and overvoltage faults, as well as rapid cycling. This product detects single phasing and unbalanced voltages regardless of regenerative voltages. Unlike similar three-phase monitor relays, the PMP Series will continue to function even with a lost phase. They are the only line-powered units in their class to retain fault indication and continuous monitoring of all voltages during a phase loss, increasing the ease of troubleshooting and the level of protection.
Technical Specifications
- Item - Relay Phase Monitor Relay
- Input or Control Voltage 480 to 600V AC
- AC Contact Rating - Relay 10A @ 277V
- DC Contact Rating - Relay 7A @ 30V
- Base Type - Plug In Relay Octal
- Number of Pins - Relay 8
- Mounting - Relay Plug In
- Contact Form - Relay SPDT
- Over Voltage Fixed 110% of Line Voltage Setting
- Under Voltage 432 to 540V AC
- Phase Loss Sensitivity Yes
- Phase Loss Time Delay Fixed 0.1 sec
- Phase Reversal Yes
- Phase Reversal Time Delay Fixed 0.1 sec
- Phase Unbalance Adjustable 2 to 10%
- Phase Unbalance Time Delay Adjustable 0.3 to 30.0 sec
- Restart Auto, Manual
- Restart Time Delay Adjustable 1.0 to 300.0 sec
- Socket Code - Relay A
- Body Height - Relay 2.9 in
- Body Width - Relay 1.7 in
- Body Depth - Relay 2.4 in
- Overall Height - Relay 3.0 in
Manufacturer Details
- Manufacturer: Macromatic
- Condensed Mfg Number: PMP575
- MPN: PMP575
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490075
- GDS Category Name: Phase Monitoring Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121517
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 17
- UNSPSC Commodity Name: Alternating voltage relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
