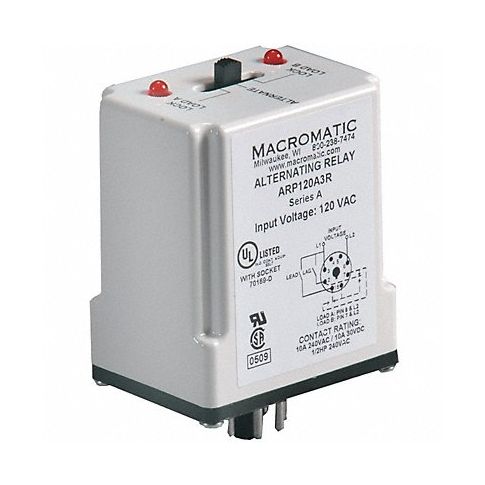

Alternating Relay 120VAC DPDTCross-Wired MPN:ARP120A3R

Alternating Relays with DPDT cross-wired outputs are used in applications requiring both (a) the optimization of load usage by equalizing the run time of two loads and (b) additional capacity in case of excess load requirements. This alternating action is initiated by a control switch, such as a ?oat switch, pressure switch, or other isolated contact. Each time the initiating switch is opened, the output relay contacts will change state, thus alternating the two loads. Two LEDs indicate which load will energize ?rst. These products are typically used to control two loads when the need to have both loads on at the same time for additional capacity is required. However, they can be used with only one input device—simply wiring the single input device where the “LEAD” input is shown on the wiring diagram and disregard the second input, or “LAG” switch. A three-position selector switch is offered. This allows a DPDT cross-wired unit to alternate the two loads as normal, or lock the relay to always operate the same load ?rst each time. A load that has fewer hours of operation than the other load could be used more often to eventually balance the run time of both loads. The selector switch has a low-pro?le to prevent any accidental changes in status.

Technical Specifications

• Item - Relay Alternating Relay
• Coil Volts 120V AC
• AC Contact Rating - Relay 10A @ 240V
• DC Contact Rating - Relay 10A @ 28V
• Base Type - Plug In Relay Octal
• Number of Pins - Relay 8
• Mounting - Relay Plug In
• Power Consumption - Relay 3.0 VA
• Contact Form - Relay DPDT Cross-Wired
• Operating Modes - Alternating Relay Alternate, Always Energize Load 1, Always Energize Load 2
• Socket Code - Relay A
• Alternating Mode Selection Method Selector Switch
• Status Indicator LED Indicates Next Load to Energize
• Body Height - Relay 2.9 in
• Body Width - Relay 2.4 in
• Body Depth - Relay 1.7 in
• Overall Height - Relay 3.1 in
• Standards CE, UL

Manufacturer Details

• Manufacturer: Macromatic
• Condensed Mfg Number: ARP120A3R
• MPN: ARP120A3R

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490080
• GDS Category Name: Alternating Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121517
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 17
• UNSPSC Commodity Name: Alternating voltage relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
