Multi-level Lqd Swch 2 NPT 60 VA Rtng MPN:ML5555

Discount: See in Cart
Free Shipping
In Stock
Brand: Madison
Part #: ML5555
SKU
226-CXG-3VU47
$620.79

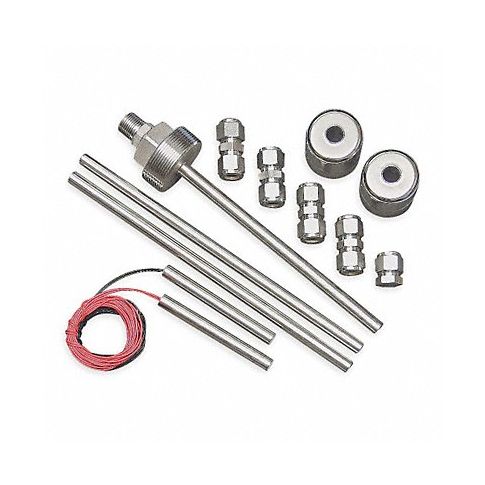

Multi-level Lqd Swch 2 NPT 60 VA Rtng
This switch mounts on the top and bottom surfaces of a tank or vessel to actuate High/Low alarms or controls for motor starters, contactors, solenoids, and relays. The encapsulated, dependable, magnetically coupled dry reed switch is designed to deliver more than 5 million switching cycles at rated electrical load.

Technical Specifications

  • Item Multi-Level Liquid Level Switch
  • Switch Function Selectable
  • Mounting Vertical Open Tank
  • Tank Connection Size 2 in NPT
  • Max. Pressure 200 psi
  • VA Rating 60
  • Operating Temp. Range 392 Degrees F Max
  • Overall Length 46 in
  • Float Material Stainless Steel
  • Float Length 2.0 in
  • Float Dia. 2.13 in
  • Stem Material Stainless Steel
  • Stem Length Adjustable
  • Width 43.19 in
  • Contact Form SPST
  • Max. Current 0.5 A
  • Max. Voltage 240 V
  • Body Material Stainless Steel
  • Conduit Size 2 in
  • Standards CE, UL
  • Electrical Connections 22 AWG PTFE
  • Float Specific Gravity 0.55

Manufacturer Details

  • Manufacturer: Madison
  • Condensed Mfg Number: ML5555
  • MPN: ML5555

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 9032896060
  • GDS Category Name: Vertical Mount Closed Tank Level Switch
  • GDS Family Name: Switches
  • GDS Segment Name: Electrical
  • UNSPSC: 39121531
  • UNSPSC Class ID: 15
  • UNSPSC Commodity Name: Switches and controls and relays and accessories
  • UNSPSC Commodity ID: 31
  • UNSPSC Commodity Name: Level or float switches
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
Related ASINs: B0078RYAYU, B009093GJY, B009092XU2

Product info last updated on November 17, 2023 12:18pm UTC Category: Switches
