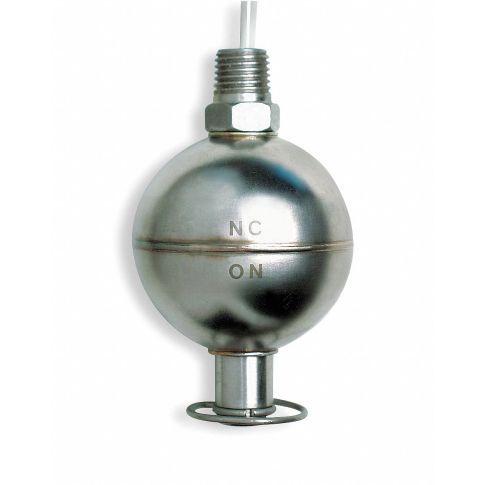

Lqd Lvl Swch Vrtcl 1/4 NPT 100 VA Rtng MPN:M5600-PR

Discount: See in Cart
Free Shipping
In Stock
Brand: Madison
Part #: M5600-PR
SKU
226-CXG-4YM33
$107.79
Lqd Lvl Swch Vrtcl 1/4 NPT 100 VA Rtng

The Lqd Lvl Swch Vrtcl is a low-profile, level switch featuring a vertical orientation with an installation that's easy and straightforward. With an NPT connection and a rating of 100VA, this solid state relay comes as a suitable component for AC circuits where switching control or monitoring of loads in electrical systems is needed, such as pump control applications, HVAC systems, security systems, or other machinery requiring voltage changes. Operating at an efficiency rate up to 98%, the Lqd Lvl Swch Vrtcl has a quick response time while minimizing heat generation for added reliability and durability. Owing to its ability to control various loads without influencing circuit performance, the Lqd Lvl Swch Vrtcl is ideal for numerous industries, such as factory automation, transportation systems, or commercial applications that involve controlling heavy machinery.

This switch mounts on the top and bottom surfaces of a tank or vessel to actuate High/Low alarms or controls for motor starters, contactors, solenoids, and relays. The encapsulated, dependable, magnetically coupled dry reed switch is designed to deliver more than 5 million switching cycles at rated electrical load.

Technical Specifications

  • Item Liquid Level Switch
  • Switch Function Selectable
  • Mounting Vertical Open Tank
  • Tank Connection Size 1/4 in NPT
  • Max. Pressure 500 psi
  • VA Rating 100
  • Operating Temp. Range 392 Degrees F Max
  • Overall Length 3.38 in
  • Float Material Stainless Steel
  • Float Length 2.0 in
  • Float Dia. 2.0 in
  • Stem Material Stainless Steel
  • Stem Length 2.63 in
  • Height 3.52 in
  • Width 2.13 in
  • Contact Form SPST
  • Max. Current 1 A
  • Max. Voltage 240 V
  • Body Material Stainless Steel
  • Conduit Size 1/4 in
  • Standards ABS, CE, NSF
  • Electrical Connections 22 AWG PTFE Coated 24 in Leads
  • Float Specific Gravity 0.7

Manufacturer Details

  • Manufacturer: Madison
  • Condensed Mfg Number: M5600PR
  • MPN: M5600-PR

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 9026106000
  • GDS Category Name: Vertical Mount Closed Tank Level Switch
  • GDS Family Name: Switches
  • GDS Segment Name: Electrical
  • UNSPSC: 39121531
  • UNSPSC Class ID: 15
  • UNSPSC Commodity Name: Switches and controls and relays and accessories
  • UNSPSC Commodity ID: 31
  • UNSPSC Commodity Name: Level or float switches
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
Product info last updated on January 24, 2024 2:55pm UTC Category: Switches
