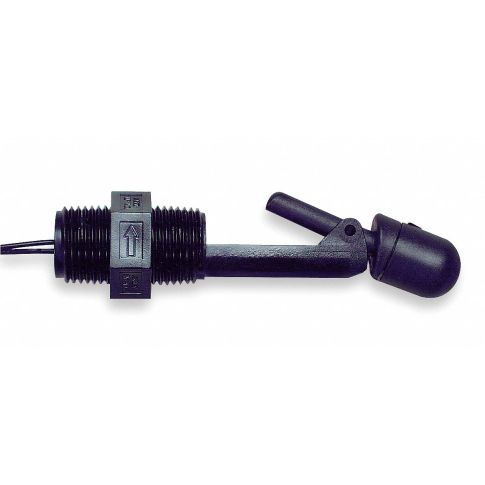

Lqd Lvl Swch Hrzntl 1/2 x1/2 NPT 266F MPN:M7700
The Lqd Lvl Swch Hrzntl 1/2 x1/2 NPT 266F from Madison is a reliable liquid level switch designed for pump-up or pump-down operations in tanks or vessels. Its versatility allows it to be mounted outside the tank using an NPT coupling, or inside using a bulkhead fitting (UNC/UNF). With 5 million switching cycles at a rated electrical load, this switch is perfect for controlling motor starters, contactors, solenoids, and relays. Its selectable switch function enables easy customization, while the magnetically coupled dry reed switch ensures durability in harsh environments. Ideal for various applications including water level monitoring, fluid management systems, and industrial automation, this liquid level switch provides precise control and reliability.
Top product features:
- Selectable switch function
- Reliability in harsh environments
- Versatile mounting options
Top product applications:
- Monitor liquid levels in tanks or vessels
- Control pump-up and pump-down operations
- Automate industrial processes with precise level control
Technical Specifications
- Item Tank Liquid Level Switch
- Switch Function Selectable
- Mounting Side
- Tank Connection Size 1/2 in x 1/2 in NPT
- Contact Form SPST
- VA Rating 30
- Operating Temp. Range 266 Degrees F Max.
- Max. Pressure 100 psi
- Overall Length 2.75 in
- Float Material PBT
- Float Length 2.11 in
- Float Dia. 0.65 in
- Stem Material PBT
- Stem Length 2.75 in
- Width 0.6 in
- Max. Current 0.28 A
- Max. Voltage 240
- Body Material PBT
- Conduit Size 1/2 in x 1/2 in
- Standards CE, CSA, UL
- Electrical Connections 22 ga PTFE Coated 24 in Leads
- Float Specific Gravity 0.7
Manufacturer Details
- Manufacturer: Madison
- Condensed Mfg Number: M7700
- MPN: M7700
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026106000
- GDS Category Name: Side Mount Closed Tank Level Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121531
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 31
- UNSPSC Commodity Name: Level or float switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
