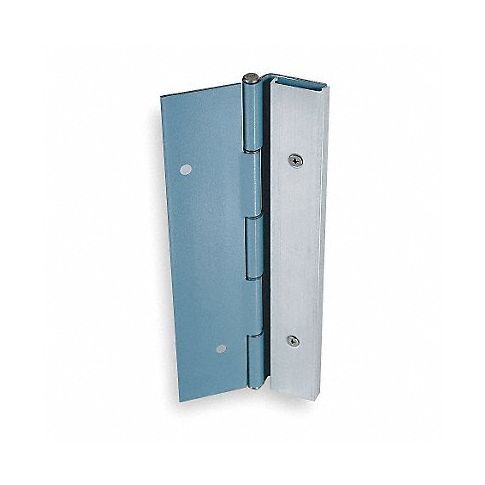

Piano Hinge Steel Prime Coat MPN:HS203-001-600
MARKAR continuous hinge with holes is an ideal solution for heavy-duty door applications requiring superior strength, durability, and ease of use. Made from heavy-duty, 14-ga. steel, this hinge can handle doors weighing up to 600 lb., with a maximum door width of 4 ft. The minimum door clearance of 1/8 ensures smooth operation, while the 3/4 dia. stainless steel hinge pin provides long-lasting performance. The hinge can be used to reverse the handing of a door or to reverse the swing of a door hung on an evenly rabbeted frame. The MARKAR continuous hinge is perfect for a wide range of applications, including industrial doors, garage doors, storage facility doors, and more. With its versatile design and robust construction, this hinge delivers outstanding performance and durability.
Top product features:
- Heavy-duty steel construction
- High load capacity for heavy-duty doors
- Long-lasting stainless steel hinge pin
Top product applications:
- Heavy-duty doors in industrial settings, such as warehouses or factories
- Garage and shed doors in residential properties
- Storage facility doors for secure storage units
Technical Specifications
- Item Continuous Hinge
- Ligature Resistant No
- Material Steel
- Range of Motion 180 Degrees
- Finish Gray Enamel
- Holes With
- Load Capacity 600.0 lb
- Orientation Non Handed
- Overall Knuckle Height 1 in
- Door Leaf Height 84 in
- Frame Leaf Height 84 in
- Door Leaf Width 1 11/16 in
- Frame Leaf Width 1 3/4 in
- Door Leaf Thickness 0.437 in
- Frame Leaf Thickness 0.125 in
- Required Door Thickness 1-3/4 in
- Length 7 ft
- Hardware Included
- Holes per Leaf 2
- Mounting Half Surface
- Pin Dia. 1/4 in
- Pin Material Stainless Steel
- Pin Type Nonremovable
- Standards ANSI/BHMA Standard A156.26 Grade 2
- Overall Width 3 7/8 in
Manufacturer Details
- Manufacturer: Markar
- Condensed Mfg Number: HS203001600
- MPN: HS203-001-600
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8302106030
- GDS Category Name: Piano Hinges
- GDS Family Name: Latches Hasps and Hinges
- GDS Segment Name: Hardware
- UNSPSC: 31162403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Miscellaneous fasteners
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Hinges
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
