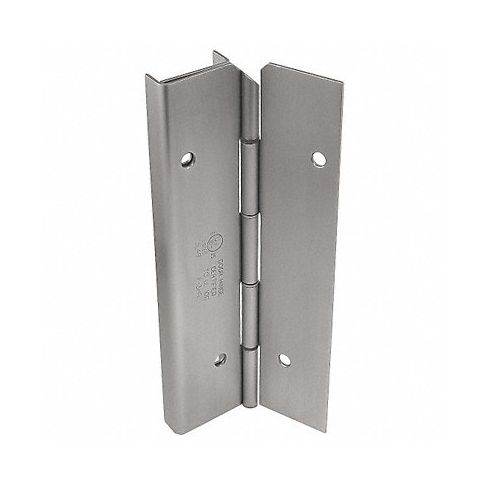

Continuous Hinge w/Edge Guard 96 in L MPN:HG305-002-630-HT-MP-LH

In high-traffic areas, where carts, gurnees, etc. have the potential to gouge and ding the door and frame, the integral wrap-around edge guard on this Markar mortise-mounted continuous butt hinge helps protect your property against damage. It also has a full-length piano hinge design to provide support for the whole length of the door and help prevent door sag, while the permanently lubricated Medical Bearings provide smooth operation with no metal-to-metal contact, for improved performance and service life. Included Adjust-A-Screw™ mounting screws let you correct frame fit problems up to 3/8". Can be used on both fire-labeled and non-labeled openings.

Technical Specifications

• Item Continuous Hinge
• Ligature Resistant Yes
• Material Stainless Steel
• Range of Motion 180 Degrees
• Finish Satin Stainless Steel
• Holes With
• Load Capacity 540.0 lb
• Orientation Left Hand
• Overall Knuckle Height 2 in
• Door Leaf Height 96 in
• Frame Leaf Height 96 in
• Door Leaf Width 1 3/4 in
• Frame Leaf Width 1 15/16 in
• Door Leaf Thickness 0.075 in
• Frame Leaf Thickness 0.075 in
• Required Door Thickness 1-3/4 in
• Length 96 in
• Hardware Included
• Hole Spacing 6 in
• Holes per Leaf 24
• Mounting Full Mortise
• Pin Dia. 3/16 in
• Pin Material Stainless Steel
• Pin Type Hospital Tip
• Standards ANSI/BHMA Standard A 156.26 Grade 1, Fire Rated
• Overall Width 4 1/2 in

Manufacturer Details

• Manufacturer: Markar
• Condensed Mfg Number: HG305002630HTMPLH
• MPN: HG305-002-630-HT-MP-LH

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8302106030
• GDS Category Name: Piano Hinges
• GDS Family Name: Latches Hasps and Hinges
• GDS Segment Name: Hardware
• UNSPSC: 31162403
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Miscellaneous fasteners
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Hinges
• UNSPSC Family ID: 16
• UNSPSC Family Name: Hardware
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
