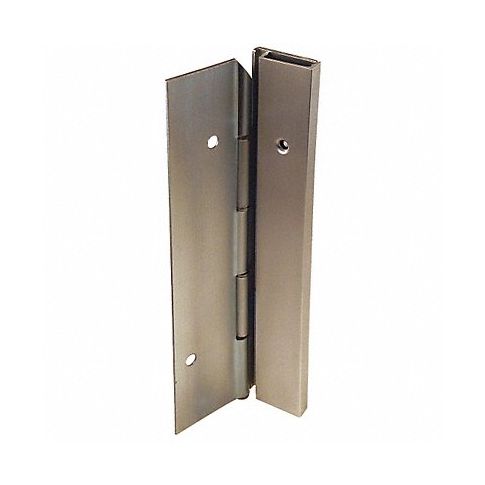

Continuous Hinge CarbonStl 96inL 21Holes MPN:HS203-002-600-HT-MP-LH

Designed specifically for retrofit applications, this Markar half-surface pin-and-barrel-type continuous hinge provides support for the entire height of the door, and is designed for use with interior doors in high-traffic areas. The hinge fits into the gap left after standard butt hinges are removed and can be used to assist in reversing the handing of a door, or to reverse the swing of a door hung in an evenly-rabbetted frame. Permanently lubricated Medical Bearings provide smooth operation with no metal-to-metal contact, to help improve service life and overall function. Use on both fire-labeled and non-labeled openings.

Technical Specifications

• Item Continuous Hinge
• Ligature Resistant Yes
• Material Carbon Steel
• Range of Motion 180 Degrees
• Finish Gray Enamel
• Holes With
• Load Capacity 540.0 lb
• Orientation Left Hand
• Overall Knuckle Height 2 in
• Door Leaf Height 96 in
• Frame Leaf Height 96 in
• Door Leaf Width 1 11/16 in
• Frame Leaf Width 1 3/4 in
• Door Leaf Thickness 0.075 in
• Frame Leaf Thickness 0.075 in
• Required Door Thickness 1-3/4 in
• Length 96 in
• Hardware Included
• Hole Spacing 6 in
• Holes per Leaf 21
• Mounting Half Surface
• Pin Dia. 3/16 in
• Pin Material Stainless Steel
• Pin Type Hospital Tip
• Standards ANSI/BHMA Standard A 156.26 Grade 1, Fire Rated
• Overall Width 3 7/8 in

Manufacturer Details

• Manufacturer: Markar
• Condensed Mfg Number: HS203002600HTMPLH
• MPN: HS203-002-600-HT-MP-LH

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8302106030
• GDS Category Name: Piano Hinges
• GDS Family Name: Latches Hasps and Hinges
• GDS Segment Name: Hardware
• UNSPSC: 31162403
• UNSPSC Class ID: 24
• UNSPSC Commodity Name: Miscellaneous fasteners
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Hinges
• UNSPSC Family ID: 16
• UNSPSC Family Name: Hardware
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
