Braided Hose W/Carbon Steel Fixed & Floating Flanges 3 x 12 FFL 3x12
Braided Hose W/Carbon Steel Fixed & Floating Flanges 3 x 12 FFL 3x12 Shop Personal Protective Equipment, Maintenance, Repair & Operations. Free Shipping.

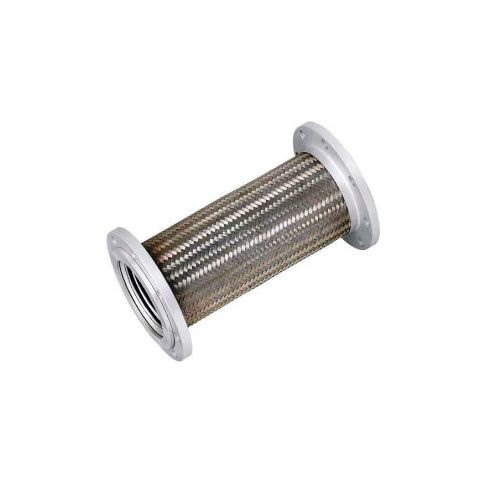

Braided Hose W/Carbon Steel Fixed & Floating Flanges 3 x 12
Metallic flexible hoses reduce pipe wall noise transmission, prevent pipe fatigue, simplify alignment problems and reduce equipment flange stress. Hoses are manufactured from annular corrugated 304 stainless steel tubing covered by a tightly woven 304 stainless steel braid. The corrugations are very close pitched for maximum flexibility. Type FFL has fixed x floating raised face flanges. The floating flange on one side make it easier to align the bolt holes during installation. The raised face flanges seal better than traditional flat face flanges.
Metallic flexible hoses reduce pipe wall noise transmission, prevent pipe fatigue, simplify alignment problems and reduce equipment flange stress. Hoses are manufactured from annular corrugated 304 stainless steel tubing covered by a tightly woven 304 stainless steel braid. The corrugations are very close pitched for maximum flexibility. Type FFL has fixed x floating raised face flanges. The floating flange on one side make it easier to align the bolt holes during installation. The raised face flanges seal better than traditional flat face flanges.
Product Specifications
- WIDTH INCHES1/2
- BRANDMason Industries
- CONSTRUCTION304 Stainless Steel
- CORRUGATIONS PER FOOT46
- DIAMETER INCHES3
- FITTING TYPEFixed x Floating 150 lb Flanges
- LIVE LENGTH INCHES9-1/8
- MANUFACTURERS PART NUMBERFFL 3x12
- MAXIMUM LATERAL OFFSET INCHES1/2
- MAXIMUM TEMPERATURE850
- OVERALL LENGTH INCHES12
- PSI280
- WEIGHT LBS16.00
Additional Information
- UNSPSC: 40142000
- Brand: Mason Industries
- Package Quantity: 1
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Weight: 16.00
Product info last updated on November 7, 2024 11:51am UTC
Category: Hoses and Tubes
