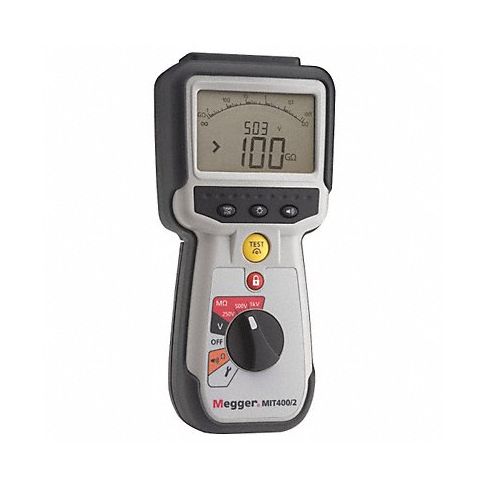

Megohmmeter 250/500/1000V DC LCD Case MPN:MIT400/2

The Megger® MIT400/2 CAT IV insulation tester is designed for fast results and operator safety in a wide range of applications, including electrical installation, cable and motor testing, automotive, ESD, panel building, avionics, and maintenance. It offers a high insulation range and digital/analog arc display, plus DC/AC true RMS voltage testing with stabilized test voltage for fast, accurate measurements. Live circuit detection and protection. Fast continuity testing includes autoranging 0.01O to 1.0MO, in addition to 200mA and 20mA test options. Enhanced feedback-controlled test voltages limit over-voltage to 2%, vs. the 10% to 20% industry standard.

Technical Specifications

• Item Battery Operated Megohmmeter
• Output Test Voltage 250/500/1000V DC
• Insulation Resistance Range 0 to 200 gigohm
• Live Circuit Detection Yes
• Resistance Range 0.1 to 999.9 ohm
• Capacitance Range No
• Display Backlit LCD
• Accuracy +/-2% + 2 Digits
• Auto Power Off Yes
• Safety Rating CAT IV 600V
• Leakage Current Range Yes
• Auto Ranging Yes
• Features Variable Test Voltage and Pass/Fail Indicator
• Power Source (6) AA Batteries
• Includes Certificate of Calibration
• Manufacturers Warranty Length 3 yr

Manufacturer Details

• Manufacturer: Megger
• Condensed Mfg Number: MIT4002
• MPN: MIT400/2

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: GB
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9030333400
• GDS Category Name: Megohmmeters and Insulation-Testing Multimeters
• GDS Family Name: Electrical Power Testing
• GDS Segment Name: Test Instruments
• UNSPSC: 41113628
• UNSPSC Class ID: 36
• UNSPSC Commodity Name: Electrical measuring and testing equipment
• UNSPSC Commodity ID: 28
• UNSPSC Commodity Name: Megohmmeters
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
