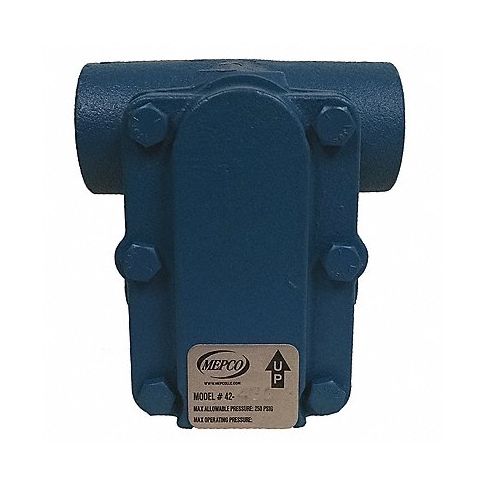

Steam Trap 11/32 NPT Outlet SS Disc MPN:42-215A

Designed for low pressure or vacuum steam heating systems and steam process equipment, this MEPCO steam trap is suitable for use in low pressure mains and risers, pressing machines, space heaters, unit heaters, and water heaters. Model can also be used as a replacement for inefficient inverted bucket traps. Compact unit allows easy access to all interior parts, and no pipe connections need to be broken for steam trap maintenance. The body has in-line pipe connections for simple straight through pipe hook-ups. The air vent valve, seat, and the complete valve mechanism are stainless steel construction for durability and long life.

Technical Specifications

• Item Steam Trap
• (F)NPT Connections 3/4 in
• Max. Operating PSI 15 psi
• End to End Length 5 in
• Condensate Capacity Lbs/Hr 1,129
• Max. Temp. 450 Degrees F
• Type Float and Thermostatic
• Downstream PSI Range 0 to 10 psi
• Body Material Cast Iron
• NPT Inlet 3/4 in
• NPT Outlet 11/32 in
• NPT Port 3/4 in
• Disc Material Stainless Steel
• Pipe Configuration Straight
• Trap Position Horizontal
• Pressure Air Vent Releases Air and Non-Condensable Gases That Adversely Affect The Heat Transfer of A Steam System
• Application Steam

Manufacturer Details

• Manufacturer: Mepco
• Condensed Mfg Number: 42215A
• MPN: 42-215A

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Steam Traps
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40142503
• UNSPSC Class ID: 25
• UNSPSC Commodity Name: Traps and strainers
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Steam traps
• UNSPSC Family ID: 14
• UNSPSC Family Name: Fluid and gas distribution
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
