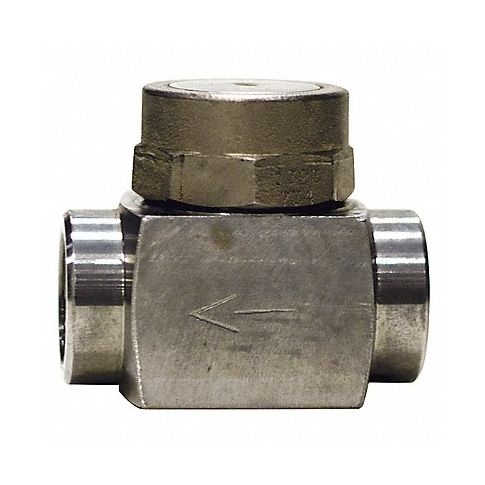

Steam Trap 1 NPT Outlet SS Disc MPN:MD-88N

Durable MEPCO steam trap provides economical performance in drip leg, tracing, and process services. Allows you to easily inspect, remove, and replace trap without removing the unit from the line. Trap is corrosion-resistant stainless steel construction and has a simple, 1-pc. design for minimal maintenance and long service life. Model is rugged enough to resist superheat, vibration, and water hammer conditions.

Technical Specifications

• Item Steam Trap
• (F)NPT Connections 1 in
• Max. Operating PSI 600 psi
• End to End Length 3 5/16 in
• Condensate Capacity Lbs/Hr 2,820
• Max. Temp. 800 Degrees F
• Type Disc
• Downstream PSI Range 0 to 595 psi
• Body Material Stainless Steel
• NPT Inlet 1 in
• NPT Outlet 1 in
• NPT Port 1 in
• Disc Material Stainless Steel
• Pipe Configuration Straight
• Trap Position Horizontal
• Pressure Air Vent Releases Air and Non-Condensable Gases That Adversely Affect The Heat Transfer of A Steam System
• Application Steam

Manufacturer Details

• Manufacturer: Mepco
• Condensed Mfg Number: MD88N
• MPN: MD-88N

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Steam Traps
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40142503
• UNSPSC Class ID: 25
• UNSPSC Commodity Name: Traps and strainers
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Steam traps
• UNSPSC Family ID: 14
• UNSPSC Family Name: Fluid and gas distribution
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
