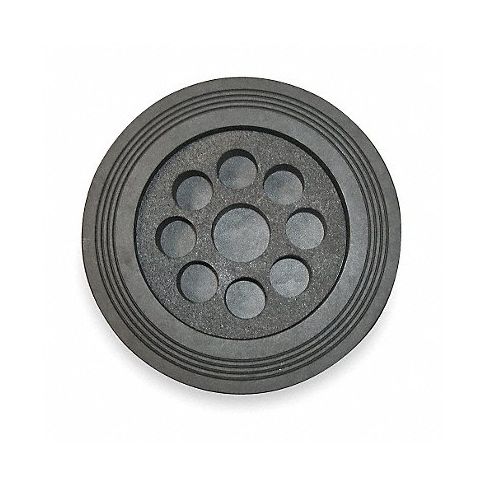

Rupture Disc Graphite 2 In 40 PSIG MPN:S3-02-40
Rupture Disc Graphite 2 In 40 PSIG
Mersen's Rupture Disc Graphite 2 In 40 PSIG is an exceptional solution for chemical and pharmaceutical industries that require effective pressure relief in their equipment. This versatile product features a resin-impregnated graphite material that is highly resistant to most corrosive liquids, vapors, and corrosive compounds. With its ability to cycle to 75% of rated burst pressure within 5%, it ensures reliable pressure relief without fail due to pressure fatigue. The product is suitable for use in pressurized equipment, with a diameter of 4 inches and fitting pipe size of 2 inches. Its robust construction and extensive range of temperature ( -20 to 300F ) make it ideal for various applications where precise pressure control is required.
Top product features:
- Resin-impregnated graphite material Provides superior resistance to corrosive liquids and vapors, making it suitable for harsh chemical environments.
- Cycles to 75% of rated burst pressure within 5% Ensures reliable pressure relief without fail due to pressure fatigue, providing peace of mind in critical applications.
- Temperature range: -20 to 300F Offers versatility in a wide range of applications where precise pressure control is required.
Top product applications:
- Chemical processing Protect pressurized equipment from corrosive liquids and vapors in chemical plants or laboratories.
- Pharmaceutical industry Safeguard against pressure spikes and bursts in equipment during the manufacturing process of medication or drugs.
- Gas distribution Regulate pressure in pipelines to prevent dangerous ruptures or leaks, ensuring safe delivery of gas supplies to consumers.
Rupture Discs • Temp. range: -20° to 300°F Width: 7/8" Vacuum to 29.9" HgInstall between two 150-lb. ANSI flanges. Single-use discs cycle to 75% of rated burst pressure within ±5%; won't fail due to pressure fatigue. Resin-impregnated graphite material resists most corrosive liquids and vapors; inert to most acids and corrosive compounds. Especially suited for use with pressurized equipment in chemical and pharmaceutical industry applications.
Technical Specifications
- Item Rupture Disc
- Burst Pressure 40 psig
- Fits Pipe Size 2 in
- Diameter 4 in
- Thickness 7/8 in
- Body Material Graphite
- Vacuum Pressure 29.9 in Hg
- Temp. Range -20 Degrees to 300 Degrees F
Manufacturer Details
- Manufacturer: Mersen
- Condensed Mfg Number: S30240
- MPN: S3-02-40
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Rupture Discs
- GDS Family Name: Pressure and Temperature Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40142323
- UNSPSC Class ID: 23
- UNSPSC Commodity Name: Pipe fittings
- UNSPSC Commodity ID: 23
- UNSPSC Commodity Name: Rupture disk
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
