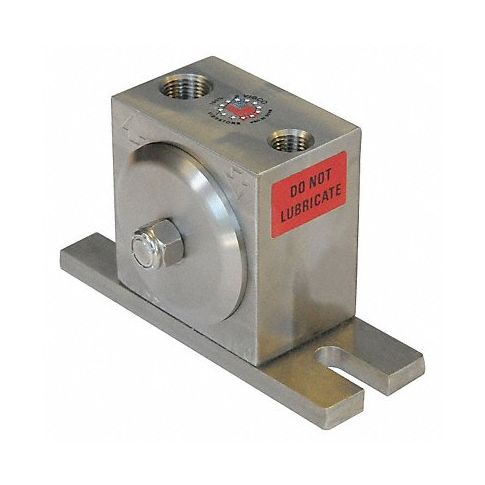

Silent Turbine Vibrator 75 lb. MPN:MLTSS-130HA
Introducing the Silent Turbine Vibrator 75 lb. from Millennium - a maintenance-free pneumatic vibrator that's quieter than an electric motor! This heavy-duty vibrator offers exceptional performance and longevity, using up to 30% less air than comparable models and lasting up to three times longer than ball and piston vibrators. Ideal for sanitary applications or where harsh chemicals are present, the Silent Turbine Vibrator features threaded exhaust ports to help maintain a clean environment. Its powerful 75 lb force rating and continuous duty rating make it suitable for a wide range of industries, including material handling, automotive, packaging, and manufacturing. Upgrade your process with the quiet power of the Silent Turbine Vibrator 75 lb. today!
Top product features:
- Quiet operation reduces noise levels and allows for quieter working environments
- Maintenance-free eliminates the need for routine maintenance, reducing downtime and costs
- Threaded exhaust ports seals the system to help maintain a clean environment
Top product applications:
- Material handling helps move heavy loads and products in warehouses, factories, or industrial settings
- Food processing improves flow of ingredients or finished products on conveyor belts, eliminating jamming or sticking
- Recycling industry separates materials for efficient recycling, sorting, and processing
Technical Specifications
- Item Pneumatic Vibrator
- Vibrator Type Turbine
- Force Rating 75 lb
- Duty Continuous
- Bin Weight Capacity 750 lb
- Speed @ 60 psi 8,600 vpm
- Speed @ 80 psi 10,500 vpm
- CFM @ 60 psi 4.5
- CFM @ 80 PSI 5.5
- dB @ 60 psi 68
- dB @ 80 psi 68
- Max. Pressure 80 max
- Inlet Port 1/8 in NPT
- Outlet Port 1/4 in NPT
- Muffler Optional
- Mounting Channel Iron and Mounting Plate Recommended
- Mounting Plate No
- Housing Material Stainless Steel
- Overall Length 3 1/2 in
- Overall Width 1 7/8 in
- Overall Height 2 9/16 in
- Application Beverage, Chemical, Food, Pharmaceutical Industries
Manufacturer Details
- Manufacturer: Millennium
- Condensed Mfg Number: MLTSS130HA
- MPN: MLTSS-130HA
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8479899895
- GDS Category Name: Pneumatic Vibrators
- GDS Family Name: Vibrators
- GDS Segment Name: Power Transmission
- UNSPSC: 20111606
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Drilling and operation machinery
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Pneumatic vibrators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Well drilling and operation equipment
- UNSPSC Segment ID: 20
- UNSPSC Segment Name: Mining and Well Drilling Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
