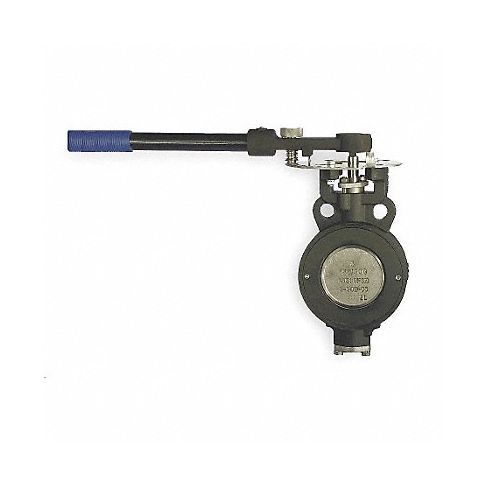

Butterfly Valve Wafer 3 In RPTFE Liner MPN:HP1WCS4212 3"

Features a redundant seal that helps prevent the seat from being drawn into the flow stream, especially under high-velocity conditions. This Milwaukee Valve butterfly valve is for use in throttling and positive shutoff applications, with hot water, cold water, and steam. Model is bidirectional, with double dead-end service and has a stainless steel spring. The 2-bolt hole centers are 4.24" apart, and are on a 6" bolt circle. Hole dia.: 0.75". Valve is mountable in any position.

Technical Specifications

• Item Butterfly Valve
• Style Wafer
• Body Material Carbon Steel
• Max. Water Pressure 285 psi
• Max. Steam Pressure 150 psi
• Pipe Size 3 in
• Temp. Range -20 to 400 Degrees F
• Liner Material RPTFE
• Disc Material 316 Stainless Steel
• Handle Type Lever
• Number of Bolt Holes 4
• Bolt Circle Dia. 6 in
• Lug Dia. 5/8-11
• Standards MSS SP-68, ANSI B16.34, API 609

Manufacturer Details

• Manufacturer: Milwaukee
• Condensed Mfg Number: HP1WCS42123
• MPN: HP1WCS4212 3"

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8481803075
• GDS Category Name: Butterfly Valves
• GDS Family Name: Flow Control Valves
• GDS Segment Name: Plumbing
• UNSPSC: 40141620
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Valves
• UNSPSC Commodity ID: 20
• UNSPSC Commodity Name: Butterfly wafer pattern valves
• UNSPSC Family ID: 14
• UNSPSC Family Name: Fluid and gas distribution
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
