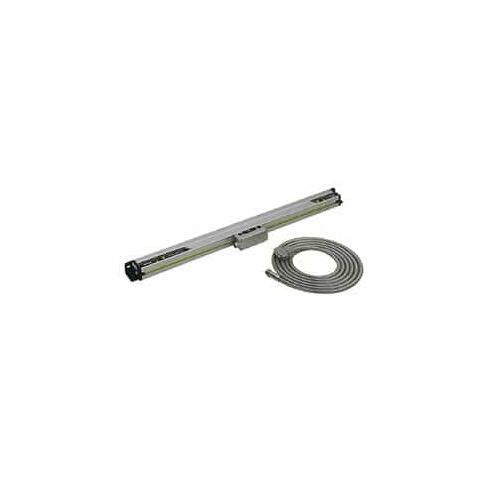

Electromagnetic Scale: 37.01" Max Measuring Range, 0.002, 0.001, 0.0005, 0.0004, 0.0002 & 0.0001" Resolution, 43" Scale Length MPN:539-816R
Introducing our premium electromagnetic scale, designed for precise measurements in industries ranging from manufacturing to laboratory settings. With a measuring range of up to 36 inches (900 mm), this robust tool boasts an accuracy of 7 micrometers and is ideal for use with jigs, milling machines, and XY tables. The IP67 rating ensures protection against dust, dirt, and water intrusion, while the Absolute Scales and Electromagnetic Induction Principle provide unparalleled precision and accuracy. Engineered for durability, this scale has a Maximum Measuring Range of 37.01 inches (940 mm) and is equipped with multiple resolution settings to meet your specific needs. Use it in environments with temperatures between 0F and 122F (0C and 50C), making it a versatile and reliable tool for any job.
Top product features:
- Max Measuring Range of 36 inches (900 mm) for precise measurements in various applications.
- Accuracy of up to 7 micrometers ensures highly precise measurements for quality control and accuracy.
- Ability to measure in different resolutions: 0.002/0.0010/0.0005/0.0004/0.0002/0.0001 inches or 0.020/0.010/0.004/0.002 mm, to meet the specific needs of your project.
Top product applications:
- Inspection and quality control in manufacturing plants to ensure precise measurements for quality assurance
- Tool and die making to create accurate parts for various industries
- Medical device production for measuring components' dimensions accurately during production
Product Information
- : 539-816R
- Accuracy (Micrometer): 7
- Cable Length (Inch): 196.8500
- Cable Length (Meters): 5.00
- Features: Absolute Scales; Electromagnetic Induction Principle
- For Use With: Jigs; Milling Machines; XY Tables
- Ip Rating: IP67
- Maximum Measurement: 36in; 900mm
- Maximum Measuring Range (Decimal Inch): 37.0100
- Maximum Measuring Range (mm): 940.00
- Operating Temperature Range (C): 0 to 45
- Resolution: 0.002/0.0010/0.0005/0.0004/0.0002/0.0001 in; 0.020/0.010/0.004/0.002 mm; 1.00 m
- Resolution (Decimal Inch): 0.002000;0.001000;0.000500;0.000400;0.000200;0.000100
- Resolution (Micron): 1.00
- Resolution (mm): 0.0200;0.0100;0.0040;0.0020
- Scale Length (Decimal Inch): 43.0000
- Scale Length (mm): 1098.00
- Scale Type: Electromagnetic
- Series: AT715
- Storage Temperature Range (C): -20 to 70
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 41111900
- CA Restricted (Prop 65): Unknown
- Package Weight: 6.29
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 4:35am UTC Category: DRO Linear Scales
