K4646 Data Logger Pressure/Temp 0 to 2000 psia MPN:5396-0335
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-45RM65

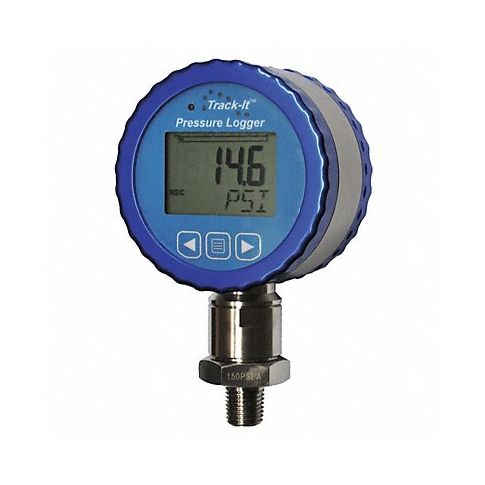

K4646 Data Logger Pressure/Temp 0 to 2000 psia
Battery-powered, water-resistant IP67 loggers display and record up to 130,000 samples. Records pressure, vacuum, temperature, and parameter alone. Feature alarm set points and indicators, real time data, and min./max. Readings are displayed live. The data logger plugs into a USB port on your PC; allowing you to customize settings, transfer data, or view data in real time with the included Track-It™ software program. Include software, USB cable, Android® cable, and battery. 1/4" male NPT connection.
Technical Specifications
- Item Data Logger
- Type Pressure And Temperature
- Temp. Range (F) -4 Degrees to 185 Degrees
- Relative Humidity Range 0 to 100%
- Pressure Range 0 to 2000 psia
- Accuracy +/-0.25%
- Battery Life 3 yr
- Sample Point Storage 130,000
- Remote Probe No
- Digital Readout LCD
- AC Adapter No
- Waterproof IP67
- Connection Size 1/4 in NPT
- Time Intervals 2 sec to 24 hr
- Alarm Yes
- Resists Water
- Width (In.) 2.94 in
- Depth (In.) 1.82 in
- Height (In.) 4.78 in
- Dia. 2.94 in
- Software Required Yes
- Special Features Rotate Head and Display
- Compatible With Windows 7, 8 and 10
- Frequency of Transmissions User Selectable
- Interface USB
- Includes Android Cable and Battery, Software, USB Cable
- Manufacturers Warranty Length 1 yr
