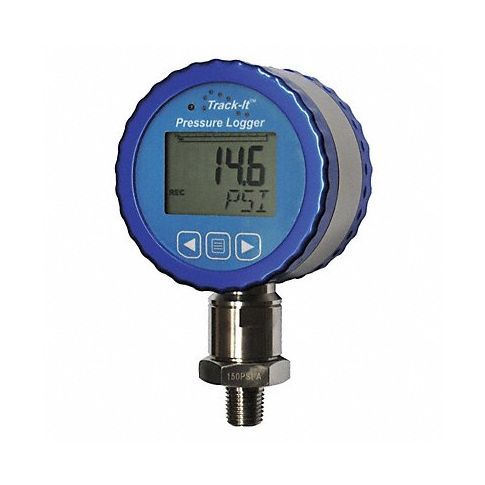

K4648 Pressure/Temp Vacuum/Temp Data Logger MPN:5396-0337

Battery-powered, water-resistant IP67 loggers display and record up to 130,000 samples. Records pressure, vacuum, temperature, and parameter alone. Feature alarm set points and indicators, real time data, and min./max. Readings are displayed live. The data logger plugs into a USB port on your PC; allowing you to customize settings, transfer data, or view data in real time with the included Track-It™ software program. Include software, USB cable, Android® cable, and battery. 1/4" male NPT connection.

Technical Specifications

• Item Data Logger
• Type Pressure And Temperature
• Temp. Range (F) -4 Degrees to 185 Degrees
• Relative Humidity Range 0 to 100%
• Pressure Range 380 to 760 Torr
• Accuracy +/-0.25%
• Battery Life 3 yr
• Sample Point Storage 130,000
• Remote Probe No
• Digital Readout LCD
• AC Adapter No
• Waterproof IP67
• Connection Size 1/4 in NPT
• Time Intervals 2 sec to 24 hr
• Alarm Yes
• Resists Water
• Width (In.) 2.94 in
• Depth (In.) 1.82 in
• Height (In.) 4.78 in
• Dia. 2.94 in
• Software Required Yes
• Special Features Rotate Head and Display
• Compatible With Windows 7, 8 and 10
• Frequency of Transmissions User Selectable
• Interface USB
• Includes Android Cable and Battery, Software, USB Cable
• Manufacturers Warranty Length 1 yr

Manufacturer Details

• Manufacturer: Monarch
• Condensed Mfg Number: 53960337
• MPN: 5396-0337

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9026208000
• GDS Category Name: Nonelectrical Properties Data Loggers
• GDS Family Name: Data Recording
• GDS Segment Name: Test Instruments
• UNSPSC: 20122903
• UNSPSC Class ID: 29
• UNSPSC Commodity Name: Surface data logging equipment
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Surface data logging units
• UNSPSC Family ID: 12
• UNSPSC Family Name: Oil and gas drilling and exploration equipment
• UNSPSC Segment ID: 20
• UNSPSC Segment Name: Mining and Well Drilling Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
