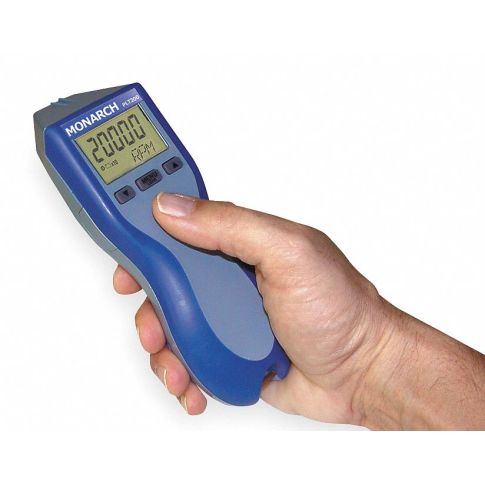

PLT200 Pocket Laser Tachometer MPN:6125-010
Introducing the PLT200 Pocket Laser Tachometer from Monarch! This versatile device offers both contact and non-contact measurement capabilities, allowing you to accurately measure rotational speeds from 0.5 to 20,000 RPM for contact readings and up to 200,000 RPM for non-contact readings. Whether you're measuring the speed of a vehicle engine, machinery in your workshop or manufacturing facility, this laser tachometer is an essential tool that provides fast, accurate results every time. Its compact and portable design ensures that it can be easily carried to any job site, making it perfect for on-the-go professionals who need to measure speeds in various environments. Don't compromise on accuracy - invest in the PLT200 Pocket Laser Tachometer from Monarch today!
Top product features:
- Non-contact measurement capabilities
- Accurate rotational speed readings from 0.5 to 20,000 RPM for contact and up to 200,000 RPM for non-contact measurements
- Portable design for on-the-go use
Top product applications:
- Measuring engine speed for vehicles during maintenance
- Analyzing machine performance in manufacturing facilities
- Monitoring fan rotation in heating and cooling systems
Technical Specifications
- Item Laser Tachometer
- Contact / Noncontact Contact and Noncontact
- Contact RPM Range 0.5 to 20,000
- Noncontact RPM Range 5 to 200,000
- Speed (FPM) 0.16 to 6562
- Speed (M/Min) 0.050 to 2000
- RPM Accuracy +/-0.01% of Reading
- Working Distance 25 ft
- Working Angle +/-30 Degrees
- RPM Resolution 0.001 to 10
- Light Source Laser
- Display 5 Digit +5 Alpha Numeric LCD
- Memory Last/Min/Max
- Features Accepts Remote Sensors, TTL Pulse Output, Tripod Mounting Bushing
- Indicator On Target and Low Battery
- Standards CE Compliant, Class 3R Visible Laser
- Calibration Certificate NIST
- Includes 12 in Reflective Tape, 2 AA Batteries, Instructions
Manufacturer Details
- Manufacturer: Monarch
- Condensed Mfg Number: 6125010
- MPN: 6125-010
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9029204080
- GDS Category Name: Tachometers
- GDS Family Name: Nonelectrical Properties Testing
- GDS Segment Name: Test Instruments
- UNSPSC: 41112802
- UNSPSC Class ID: 28
- UNSPSC Commodity Name: Transportation related equipment and instruments
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Tachometers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
