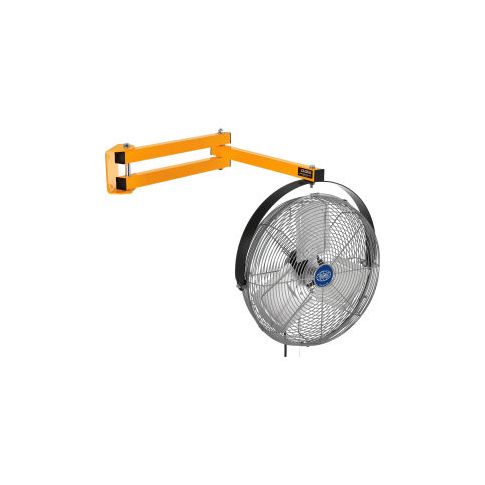

18 Inch Double Arm Loading Dock Fan with 40 Inch Arm
Industrial s 18 Inch Double Arm Loading Dock Fan provides an ideal solution for cooling and ventilating loading docks, shipping areas, warehouses, and a variety of industrial applications. The 40 Inch Steel Twin-Strut arms do not sag and extends allowing for a large range of motion to cover a large area of space. The Fan features 3 speed settings with a pull chain control and is powered by a 1/3 HP, 120V single phase motor with a 10 long SJT conductor cord. The fan blades are constructed of Aluminum with double locking guards. Wall bracket and yoke included. UL, cUL listed, and meets OSHA and UL507 Standards. Fan comes with a 2 year limited warranty standard.
Industrial s 18 Inch Double Arm Loading Dock Fan provides an ideal solution for cooling and ventilating loading docks, shipping areas, warehouses, and a variety of industrial applications. The 40 Inch Steel Twin-Strut arms do not sag and extends allowing for a large range of motion to cover a large area of space. The Fan features 3 speed settings with a pull chain control and is powered by a 1/3 HP, 120V single phase motor with a 10 long SJT conductor cord. The fan blades are constructed of Aluminum with double locking guards. Wall bracket and yoke included. UL, cUL listed, and meets OSHA and UL507 Standards. Fan comes with a 2 year limited warranty standard.
Product Specifications
- BRAND
- ASSEMBLYUnassembled- Fan with Yoke and Dock Arm
- CFM HIGH4,600
- CFM MEDIUM3,850
- CFM LOW3,200
- WIDTH INCHES22
- HEIGHT INCHES24
- DEPTH INCHES7-1/2
- LENGTH INCHES40
- FAN DIAMETER INCHES18
- WEIGHT LBS30
- MANUFACTURER'S PART NUMBER292746
- COLOR FINISHYellow / Silver
- CONSTRUCTIONMetal
- HORSEPOWER1/3
- FAN TYPEIndustrial
- RPM HIGH 1,500
- WATTS150
- PHASE1
- AMPS1.45
- HERTZ (HZ)60
- VOLTAGE120
- SPEEDS3
- MOTOR TYPEOpen Air Over
- DECIBELS (DBA)61
- OSCILLATING/NON-OSCILLATINGNon-Oscillating
- LIMITED WARRANTY YEARS2
- APPROVALS OR CERTIFICATIONSUL & cUL Listed, OSHA & UL507 Compliant
- APPLICATIONGeneral Cooling, Truck Cooling, Pick Modules Tight Spaces
- DESCRIPTIONDouble Arm Dock Fan
- MOUNT TYPEWall
- POWER CORD TYPESJT 3 Conductor
- POWER CORD LENGTH FEET10
- MAX AMBIENT TEMPERATURE °F104
- BLADE TYPEAluminum
- BLADE QUANTITY3
- MODEL292746
Additional Information
- UPC: 00707022035279
- UNSPSC: 40101602
- Color: Silver
- Package Quantity: 1
- FOB Origin: Origin
- Ships by: PARCEL
- Comes in a kit: Yes
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 27.65
