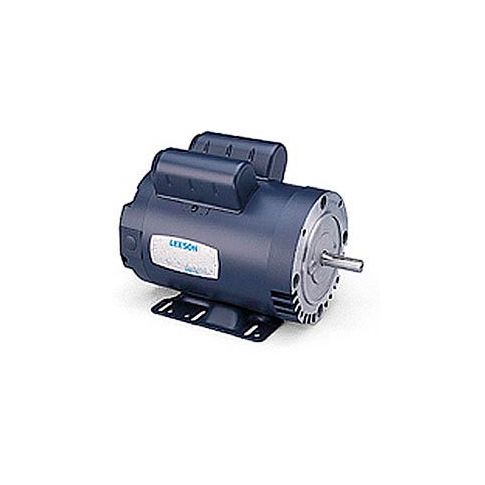

Leeson Motors - 5HP 230V 3450RPM DP Rigid C Mount 1.0 S.F. 709.00116
Free Shipping
In Stock
Motors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start, capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with Exxon POLYREX® EM lubricant, having operating temperature range of -20°F to +350°F and special formulation to provide extra long life and moisture resistance. Dynamically balanced rotor and shaft assembly. High efficiency reduced amperage energy saving designs. Stator impregnated with extra heavy varnish system. High temperature copper magnet wire for high overload capacity. Grounding provision in conduit box. Manual reset overload protector protects against automatic resets. High overload capacities provided by service factor.
Click here to see our full selection of Motor Controls and Drives.
| Compatibility |
| AO SMITH/MAGNETEK: B182 |
| Baldor: PCL1327M(Leeson frame size is 56HC ) |
| GRAINGER: 5UX55 |
Product Specifications
- HORSEPOWER5
- ENCLOSUREDP
- FRAME56H
- BRANDLeeson
- MOUNTINGC-Face Rigid
- MOTOR RPM 60Hz3450
- RPM3450
- PHASE1
- MATERIALRolled Steel
- VOLTAGE230
- NAMEPLATE AMPS20.8
- COMPATIBLE WITH/REPLACESBaldor PCL1327M
- HERTZ60
- SERVICE FACTOR1.0
- THERMAL PROTECTIONManual
- EFFICIENCY TYPEStandard
- EFFICIENCY82.5
- AMBIENT TEMP C40
- SHAFT DIAMETER5/8
- SHAFT LENGTH INCHES1-7/8
- ROTATIONCCW
- ENCLOSURE TYPEOpen/Drip Proof
- WEIGHT46
- ULY
- CSAY
- LEESON MODEL NO.P6K34DK18AA
- UPC69172034665
- DUTYContinuous
- RPM RANGE3001-3600
- is_motorYes
- DESIGNCapacitor Start Capacitor Run
- MANUFACTURER PART #116709.00
Additional Information
- UPC: 691720346655
- UNSPSC: 26101111
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 19.63
- Package Width: 11.25
- Package Height: 10.63
- Package Weight: 46.00
