GoVets™ 18" Totally Enclosed Direct Drive Duct Fan 3 Phase 1/4 HP 2947B18
GoVets™ 18" Totally Enclosed Direct Drive Duct Fan - 3 Phase 1/4 HP 2947B18
This item is NOT returnable.
This item is NOT cancellable.

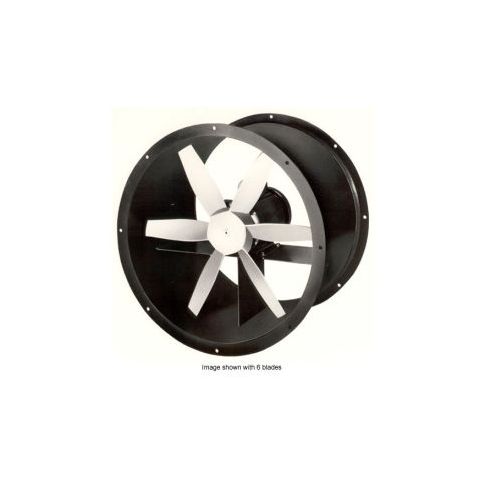

Totally Enclosed Direct Drive Duct Fan - 18"
This Direct Drive Axial Fan is ideal for duct applications in mills, mines, foundries, factories and more. Tube axial fan removes fumes, dust, smoke or steam from poorly ventilated areas. Drum housing is made of heavy gauge all welded steel. Fan blades are made of non-sparking cast aluminum. Drum features angle iron flanges welded on each end. Angle flanges are pre-drilled with eight 7/16" diameter holes around the bolt circle for easy mounting. Axial exhaust fans feature totally enclosed motor. Three phase design. Horsepower rating based upon maximum speed/load.
This Direct Drive Axial Fan is ideal for duct applications in mills, mines, foundries, factories and more. Tube axial fan removes fumes, dust, smoke or steam from poorly ventilated areas. Drum housing is made of heavy gauge all welded steel. Fan blades are made of non-sparking cast aluminum. Drum features angle iron flanges welded on each end. Angle flanges are pre-drilled with eight 7/16" diameter holes around the bolt circle for easy mounting. Axial exhaust fans feature totally enclosed motor. Three phase design. Horsepower rating based upon maximum speed/load.
Product Specifications
- ASSEMBLYAssembled
- BLADE QUANTITY4
- BOLT CIRCLE INCHES19-1/8
- BRANDAmericraft
- CFM HIGH3,450
- CONSTRUCTIONSteel Enclosure / Aluminum Propellers
- DECIBELS (DBA)74
- DEPTH INCHES14
- DESCRIPTIONDirect Drive Duct Fan
- DRIVE TYPEDirect
- FAN DIAMETER INCHES18
- HEIGHT INCHES20
- HORSEPOWER1/4
- MANUFACTURER PART NUMBERDF18-1/4-3-TEFC
- PHASE3
- RPM HIGH1,725
- VOLTAGE230 / 460
- WIDTH INCHES20
Additional Information
- UNSPSC: 40101604
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Weight: 75.00
Product info last updated on January 20, 2025 2:21pm UTC
Category: Fans and Blowers
