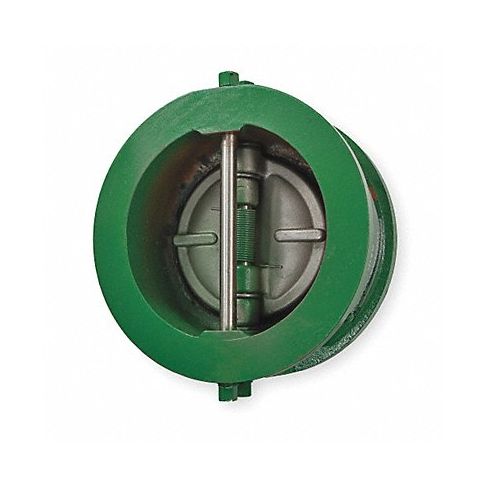

Wafer Check Valve Cast Iron 3 Flange MPN:3 71AHB3H

Sure Check™

• Max. temp.: 100°F
Class 125 valves prevent surge and water hammer due to flow reversal; specially designed springs close discs before flow reversal can occur. With stainless steel springs and Buna N seal. Mount vertically or horizontally. Designed to fit ANSI flanges. Suitable for liquid and gas service applications.
Meet ANSI standards; FM Approved.
Heavy-Duty Check Valves

• Max. pressure: 200 psi

Technical Specifications

• Item - Check Valves Check Valve
• Flow Design Single
• Mechanism and Body Design Inline Wafer
• Body Material - Valves Cast Iron
• Pipe or Tube Size - Check Valves 3 in
• Connection Type - Check Valves Flanged Wafer x Flanged Wafer
• Mounting Orientation - Check Valves Horizontal, Vertical
• Seal Material - Check Valves Buna-N
• Max. Temp. - Valves 100 Degrees F
• Max. Water Pressure - Valves 200 psi @ 150 Degrees F
• Max. Steam Pressure - Valves Not Rated
• Seat Material - Check Valves Buna-N
• Spring Material - Check Valves 316 Stainless Steel
• Application - Valves Process Piping
• Length 5 3/8 in
• Width 2 1/4 in
• Overall Height 5 3/8 in
• Standards ANSI, API, FM, UL

Manufacturer Details

• Manufacturer: Mueller
• Condensed Mfg Number: 371AHB3H
• MPN: 3 71AHB3H

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8481301090
• GDS Category Name: Check Valves
• GDS Family Name: Check Valves and Backflow Preventers
• GDS Segment Name: Plumbing
• UNSPSC: 40141618
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Valves
• UNSPSC Commodity ID: 18
• UNSPSC Commodity Name: Ball check valves
• UNSPSC Family ID: 14
• UNSPSC Family Name: Fluid and gas distribution
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
