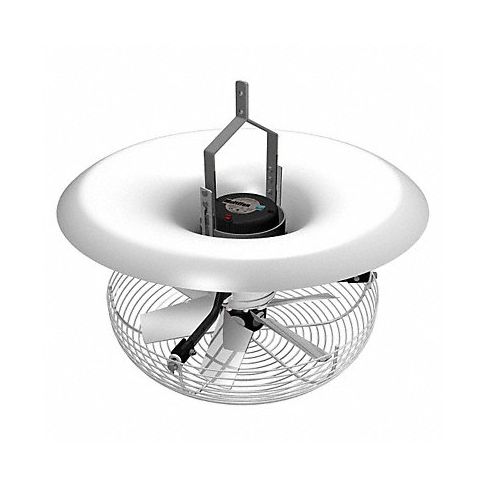

Vrtcl Recrcultn Fan 16 Blde Dia Variable MPN:T6E40K0M81160

Industrial vertical recirculation fans have a cone-shaped outlet for redistributing air and heat within a room to provide uniform coverage and humidity control. Also called V-flow fans, these air circulators are often used to optimize growing conditions for plants in greenhouses and to provide a comfortable environment for people in factories, warehouses, and sports facilities. They have a wire guard that covers the fan blades to protect against damage or accidental contact. A mounting bracket is included for attaching these fans to a rod or beam near a ceiling.

Industrial ceiling and high-volume low-speed (HVLS) ceiling fans mount to a ceiling to circulate air from overhead so they don't take up floor space. These air circulators are commonly used to cool machinery and help keep people comfortable in manufacturing plants, warehouses, and other areas with high ceilings and a large floor space. Reversible fans run clockwise to create a windchill effect for cooling during warm months or counterclockwise to bring warm air down from the ceiling to aid heating during cold months. Nonreversible fans run in one direction for cooling. These axial fans are made of heavy-gauge materials suitable for daily use, have a powerful motor that drives the fan blades to move large volumes of air, and feature high-performance bearings for a long life.

Technical Specifications

• Item Vertical Recirculation Fan
• Blade Diameter 16 in
• Voltage 240V AC
• Fan Watts 205
• Phase 1
• Air Flow 3060 cfm
• RPM 1130
• Max. Mounting Height 10 to 16 ft
• Number of Speeds Variable
• Blade Material Plastic
• Blade Finish White Polypropylene
• Fan Housing Color White
• Housing Finish Polished White Polypropylene
• Fan Blade Color White
• Number of Blades 8
• Speed Controllable - Fans Yes
• Amps 0.9 A
• Hz 60 Hz
• Max. Ambient Temp. 105 Degrees F
• Light Kit None
• Reversible No
• Mount Type Stem/Snugger
• Fan Mounting Location Ceiling
• Includes Exhaust Fan, Guard, Installation Instructions
• Standards CE

Manufacturer Details

• Manufacturer: Multifan
• Condensed Mfg Number: T6E40K0M81160
• MPN: T6E40K0M81160

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: NL
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414599080
• GDS Category Name: Ceiling Fans
• GDS Family Name: Cooling Fans and Air Circulators
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101604
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Fans
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
