NACHI Super Precision Bearing 7003CYDUP4 Universal Ground Duplex 17MM Bore 35MM OD 7003CYDUP4
NACHI Super Precision Bearing 7003CYDUP4 Universal Ground Duplex 17MM Bore 35MM OD 7003CYDUP4
This item is NOT returnable.

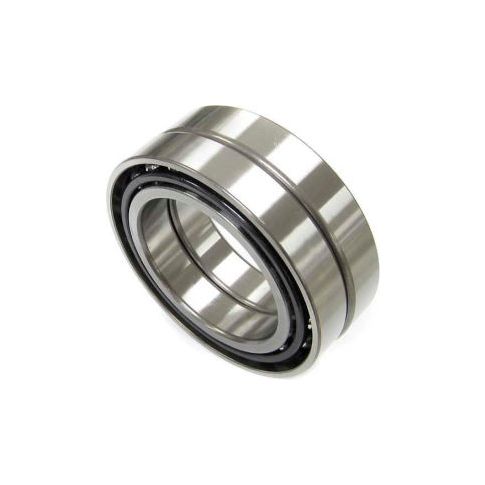

NACHI Super Precision Bearing 7003CYDUP4, Universal Ground, Duplex, 17MM Bore, 35MM OD
NACHI Features
NACHI Features
- Two single row angular contact ball bearings (15° contact angle P4) are assembled to provide a high degree of rigidity in both radial & axial directions
- These Universal Flush Ground bearings can be mounted in DB, DF or DT
- Meets the needs of machine tool manufacturers for precision
- These bearings function at lowest possible temperature for wide range of speeds & operating loads
Product Specifications
- BRANDNachi
- BEARING STYLEDuplex
- BORE DIAMETER MILLIMETERS17
- OUTER DIAMETER MILLIMETERS35
- WIDTH MILLIMETERS10 X 2
- DYNAMIC LOAD RATING (N)11,400 per pair
- STATIC LOAD RATING (N)8,300 per pair
- CAGE TYPEMolded Polyamide
- MANUFACTURER PART NUMBER7003CYDUP4
- MAX SPEED / OIL (RPM)34000
- CONTACT ANGLE15
- SERIES7000
- PRELOADLight
- TOLERANCEP4 (ABEC7)
- MANUFACTURERS PART NUMBER7003CYDUP4
Additional Information
- UNSPSC: 31171531
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 0.15
Product info last updated on August 26, 2024 2:21pm UTC
Category: Bearings
