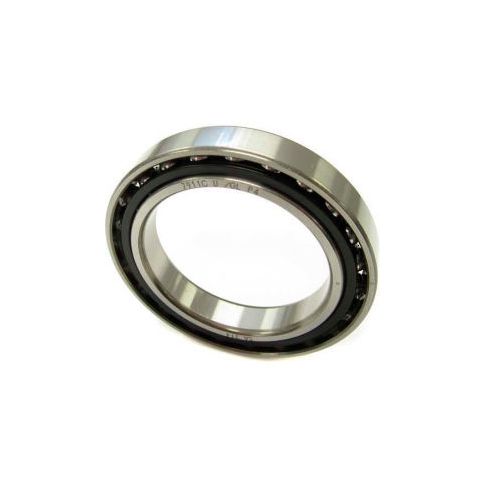

NACHI Super Precision Bearing 7909CYU/GLP4, Universal Ground, Single, 45MM Bore, 68MM OD
NACHI Features
NACHI Features
- Capable of supporting radial & axial loads in one direction
- 2 Bearings are used in a duplex pair to provide high degree of rigidity in both radial & axial directions
- Meets the needs of tool manufacturers for precision (15° contact angle, P4)
- These bearings function at lowest possible temperature for wide range of speeds & operating loads
- Universal Flush
Product Specifications
- BRANDNachi
- BEARING STYLESingle
- BORE DIAMETER MILLIMETERS45
- OUTER DIAMETER MILLIMETERS68
- WIDTH MILLIMETERS12
- DYNAMIC LOAD RATING (N)16600
- STATIC LOAD RATING (N)14100
- CAGE TYPEMolded Polyamide
- MANUFACTURER PART NUMBER7909CYU/GLP4
- MAX SPEED / OIL (RPM)28300
- CONTACT ANGLE15
- SERIES7900
- PRELOADLight
- TOLERANCEP4 (ABEC7)
- MANUFACTURERS PART NUMBER7909CYU/GLP4
Additional Information
- UNSPSC: 31171531
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 0.27
Product info last updated on May 6, 2024 1:17am UTC
Category: Bearings
