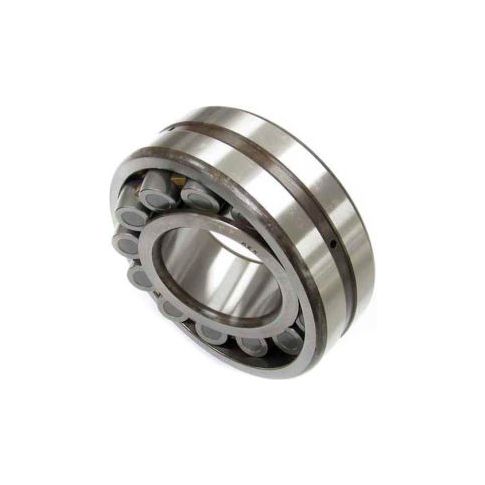

NACHI Double Row Spherical Roller Bearing 23236EW33KC3 180MM Bore 320MM OD Tapered Bore 23236EW33KC3
NACHI Double Row Spherical Roller Bearing 23236EW33KC3 180MM Bore 320MM OD Tapered Bore 23236EW33KC3
NACHI Double Row Spherical Roller Bearing 23236EW33KC3, 180MM Bore, 320MM OD, Tapered Bore
NACHI Features
NACHI Features
- NACHI spherical roller bearings can sustain both heavy radial and axial loads in either direction
- Deflection of shaft, housing, or misalignment of axes can be automatically corrected by self-aligning feature which prevents the application of excessive force
- NACHI's newly developed heat stabilization process can sustain normal function in operating temperatures of up to 200°C (392°F) with minimal dimensional changes and no reduction of bearing life
- Maximum permissible misalignment angle is approximately 2° under general service conditions
Product Specifications
- BRANDNachi
- BORE DIAMETER MILLIMETERS180
- OUTER DIAMETER MILLIMETERS320
- WIDTH MILLIMETERS112
- DYNAMIC LOAD RATING (N)1,790,000
- STATIC LOAD RATING (N)2,100,000
- MANUFACTURER PART NUMBER23236EW33KC3
- MAX SPEED / OIL (RPM)1600
Additional Information
- UNSPSC: 31171505
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 86.86
Product info last updated on May 28, 2024 1:50pm UTC
Category: Bearings
